Description
Call for Price: (800)-766-1212
Variant Cut Sheets
SCN 200:5 7526A79G01 | SCN 300:5 7526A79G02 | SCN 400:5 7526A79G03 | SCN 600:5 7526A79G04 | SCN 800:5 7526A79G05 | SCN 1000:5 7526A79G06 | SCN 1200:5 7526A79G07 | SCN 1500:5 7526A79G08 | SCN 2000:5 7526A79G09 | SCN 2500:5 7526A79G10 | SCN 3000:5 7526A79G11
SCN-D 200:5 7526A80G01 | SCN-D 300:5 7526A80G02 | SCN-D 400:5 7526A80G03 | SCN-D 600:5 7526A80G04 | SCN-D 800:5 7526A80G05 | SCN-D 1000:5 7526A80G06 | SCN-D 1200:5 7526A80G07 | SCN-D 1500:5 7526A80G08 | SCN-D 2000:5 7526A80G09 | SCN-D 2500:5 7526A80G10 | SCN-D 3000:5 7526A80G11
Product features
− 600 volt, indoor, 10 kV BIL
− 25 - 400 Hertz
− Primary amperes: 200 - 3000
− Mechanical rating: 180 x rated current
− Thermal rating: refer to selection guide
− Continuous current rating factor: refer to selection guide
Application

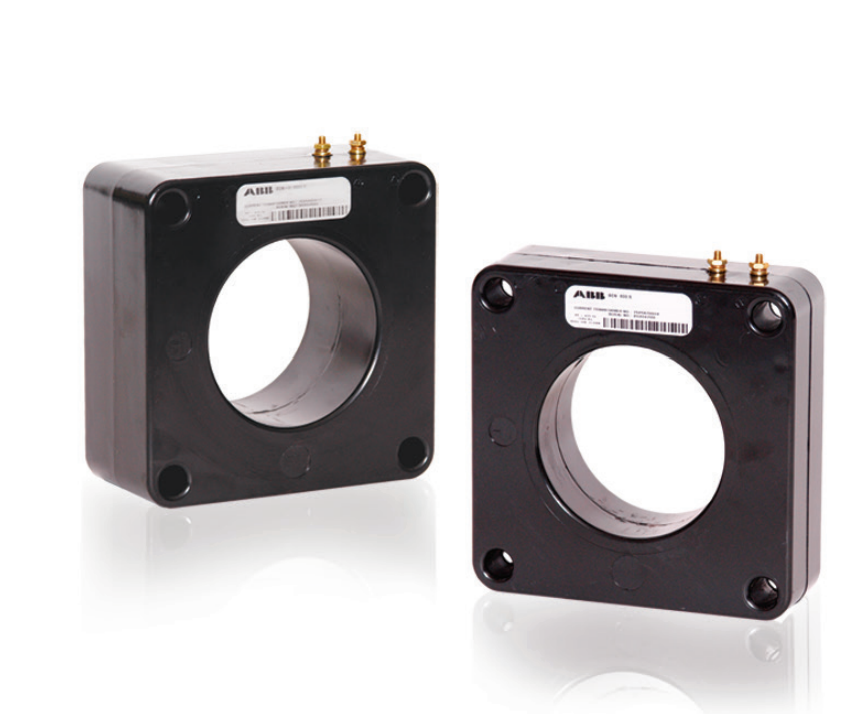

The SCN and SCN-D current transformers are used as the source of
current for relaying and metering.
Construction features
The ring-type core is insulated and toroidally wound with a fully
distributed secondary winding. The protective case, made of an
impact-resistant polycarbonate, is ultrasonically sealed.
Secondary terminals
Secondary terminals are 10-32 brass terminal studs with
hardware.
Curves
Saturation, overcurrent, ratio correction factor, and phase-angle
curves are available upon request.
Test reports
IEEE test reports are stored electronically and can be e-mailed
in various formats at the time of shipment.
Standards
These units meet all applicable IEEE and NEMA standards
