Variant Cut Sheets
SCM 200:5 7525A36G01 | SCM 300:5 7525A36G02 | SCM 400:5 7525A36G03 | SCM 500:5 7525A36G04 | SCM 600:5 7525A36G05 | SCM 800:5 7525A36G06 | SCM 1000:5 7525A36G07 | SCM 1200:5 7525A36G08 | SCM 1500:5 7525A36G09 | SCM 1600:5 7525A36G10 | SCM 2000:5 7525A36G11 | SCM 2500:5 7525A36G12 | SCM 3000:5 7525A36G13 | SCM 4000:5 7525A36G14
Product features
− 600 volt, indoor, 10 kV BIL
− 25 through 400 Hertz
− Primary amperes: 200-4000
Application

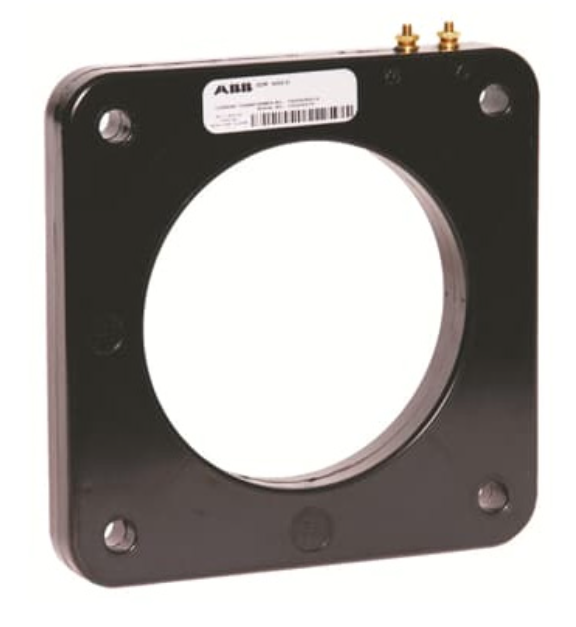

The SCM current transformer is used as the source of current for
relaying and metering.
Construction features
The ring-type core is insulated and toroidally wound with a fully
distributed secondary winding. The protective case, made of an
impact-resistant polycarbonate, is ultrasonically sealed.
Secondary terminals
Secondary terminals are 10-32 brass terminal studs with
hardware.
Curves
Saturation, overcurrent, ratio correction factor, and phase-angle
curves are available upon request.
Test reports
IEEE test reports are stored electronically and can be e-mailed
in various formats at the time of shipment.
Standards
This unit meets all applicable IEEE and NEMA standards and is
a UL Recognized Component.
