Description
Call for Price: (800)-766-1212
Variant Cut Sheets
SCL-D 200:5 7526A82G01 | SCL-D 300:5 7526A82G02 | SCL-D 400:5 7526A82G03 | SCL-D 600:5 7526A82G04 | SCL-D 800:5 7526A82G05 | SCL-D 1000:5 7526A82G06 | SCL-D 1200:5 7526A82G07 | SCL-D 1500:5 7526A82G08 | SCL-D 2000:5 7526A82G09 | SCL-D 2500:5 7526A82G10 | SCL-D 3000:5 7526A82G11 | SCL-D 4000:5 7526A82G12
Product features
• 600 volt, indoor, 10 kV BIL
• 25-400 Hertz
Application

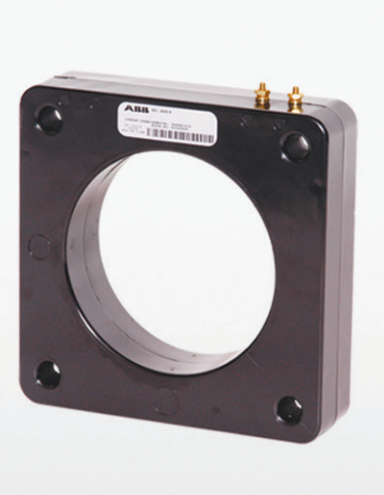

The SCL-D current transformers are designed
for use in relaying and metering applications including, but not limited to, various types of medium voltage switchgear.
Construction features
The ring-type core is insulated and toroidally wound
with a fully distributed secondary winding. The protective case, made of an impact-resistant polycarbonate, is assembled using self-tapping screws.
Secondary terminals
Secondary terminals are 10-32 brass terminal studs
with hardware.
Curves
Saturation, overcurrent, ratio correction factor, and
phase-angle curves are available upon request.
Test reports
Test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards as
requested.
UL Recognized Component
The SCL-Ds are UL Recognized Components
(file number E96461).
