Description
Call for Price: (800)-766-1212
Variant Cut Sheets
SCH-1 50:5 7525A31G01 | SCH-1 75:5 7525A31G02 | SCH-1 100:5 7525A31G03 | SCH-1 150:5 7525A31G04 | SCH-1 200:5 7525A31G05 | SCH-1 250:5 7525A31G06 | SCH-1 300:5 7525A31G07 | SCH-1 400:5 7525A31G08
SCH-2 75:5 7525A32G02 | SCH-2 100:5 7525A32G03 | SCH-2 150:5 7525A32G04 | SCH-2 200:5 7525A32G05 | SCH-2 250:5 7525A32G06 | SCH-2 300:5 7525A32G07 | SCH-2 400:5 7525A32G08 | SCH-2 500:5 7525A32G09 | SCH-2 600:5 7525A32G10
SCH-3 100:5 7525A33G03 | SCH-3 150:5 7525A33G04 | SCH-3 200:5 7525A33G05 | SCH-3 250:5 7525A33G06 | SCH-3 300:5 7525A33G07 | SCH-3 400:5 7525A33G08 | SCH-3 500:5 7525A33G09 | SCH-3 600:5 7525A33G10 | SCH-3 800:5 7525A33G12
SCH-4 150:5 7525A34G04 | SCH-4 200:5 7525A34G05 | SCH-4 250:5 7525A34G06 | SCH-4 300:5 7525A34G07 | SCH-4 400:5 7525A34G08 | SCH-4 500:5 7525A34G09 | SCH-4 600:5 7525A34G10 | SCH-4 800:5 7525A34G12
SCH-5 150:5 7525A35G04 | SCH-5 200:5 7525A35G05 | SCH-5 250:5 7525A35G06 | SCH-5 300:5 7525A35G07 | SCH-5 400:5 7525A35G08 | SCH-5 500:5 7525A35G09 | SCH-5 600:5 7525A35G10 | SCH-5 800:5 7525A35G12 | SCH-5 1000:5 7525A35G13
Product features
• 600 volt, indoor, 10 kV BIL
• 25-400 Hertz
Application

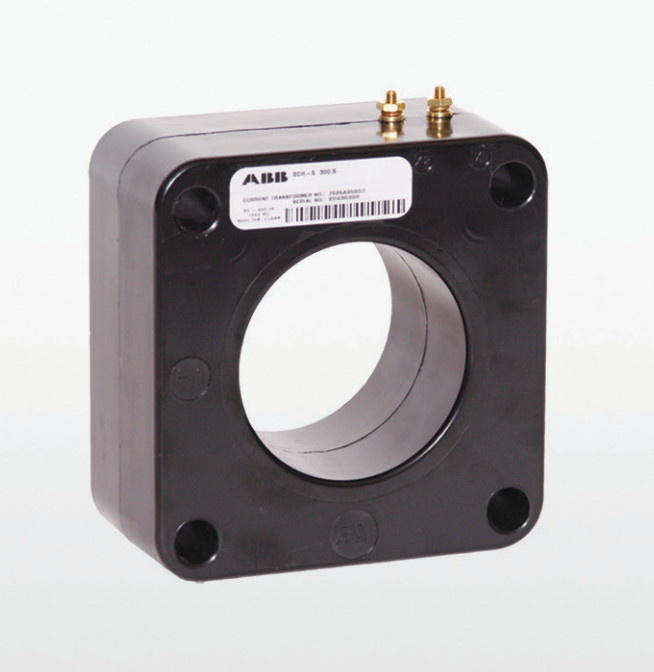

The SCH current transformer is designed for use in
relaying and metering applications including, but not
limited to, various types of medium voltage switchgear, and is available in five internal window diameter
sizes. Dual and multi-ratio designs are available upon
request.
Construction features
The ring-type core is insulated and toroidally wound
with a fully distributed secondary winding. The protective case, made of an impact-resistant polycarbonate, is assembled using self-tapping screws.
Secondary terminals
Secondary terminals are 10-32 brass terminal studs
with hardware.
Curves
Saturation, overcurrent, ratio correction factor, and
phase-angle curves are available upon request.
Test reports
Test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards as
requested.
UL Recognized Component
The SCH is a UL Recognized Component (file number
E96461).
