Description
Call for Price: (800)-766-1212
Variant Cut Sheets
SCG-1 50:5 7525A26G01 | SCG-1 75:5 7525A26G02 | SCG-1 100:5 7525A26G03 | SCG-1 150:5 7525A26G04 | SCG-1 200:5 7525A26G05 | SCG-1 250:5 7525A26G06 | SCG-1 300:5 7525A26G07 | SCG-1 400:5 7525A26G08 | SCG-1 500:5 7525A26G09 | SCG-1 600:5 7525A26G10
SCG-2 50:5 7525A27G01 | SCG-2 75:5 7525A27G02 | SCG-2 100:5 7525A27G03 | SCG-2 150:5 7525A27G04 | SCG-2 200:5 7525A27G05 | SCG-2 250:5 7525A27G06 | SCG-2 300:5 7525A27G07 | SCG-2 400:5 7525A27G08 | SCG-2 500:5 7525A27G09 | SCG-2 600:5 7525A27G10 | SCG-2 800:5 7525A27G12 | SCG-2 1000:5 7525A27G13 | SCG-2 1200:5 7525A27G14 | SCG-2 1500:5 7525A27G15
SCG-3 50:5 7525A28G01 | SCG-3 75:5 7525A28G02 | SCG-3 100:5 7525A28G03 | SCG-3 150:5 7525A28G04 | SCG-3 200:5 7525A28G05 | SCG-3 250:5 7525A28G06 | SCG-3 300:5 7525A28G07 | SCG-3 400:5 7525A28G08 | SCG-3 500:5 7525A28G09 | SCG-3 600:5 7525A28G10 | SCG-3 800:5 7525A28G12 | SCG-3 1000:5 7525A28G13 | SCG-3 1200:5 7525A28G14 | SCG-3 1500:5 7525A28G15
SCG-4 50:5 7525A29G01 | SCG-4 75:5 7525A29G02 | SCG-4 100:5 7525A29G03 | SCG-4 150:5 7525A29G04 | SCG-4 200:5 7525A29G05 | SCG-4 250:5 7525A29G06 | SCG-4 300:5 7525A29G07 | SCG-4 400:5 7525A29G08 | SCG-4 500:5 7525A29G09 | SCG-4 600:5 7525A29G10 | SCG-4 800:5 7525A29G12 | SCG-4 1000:5 7525A29G13 | SCG-4 1200:5 7525A29G14 | SCG-4 1500:5 7525A29G15 | SCG-4 2000:5 7525A29G17 | SCG-4 2500:5 7525A29G18 | SCG-4 3000:5 7525A29G19 | SCG-4 4000:5 7525A29G20
SCG-5 50:5 7525A30G01 | SCG-5 75:5 7525A30G02 | SCG-5 100:5 7525A30G03 | SCG-5 150:5 7525A30G04 | SCG-5 200:5 7525A30G05 | SCG-5 250:5 7525A30G06 | SCG-5 300:5 7525A30G07 | SCG-5 400:5 7525A30G08 | SCG-5 500:5 7525A30G09 | SCG-5 600:5 7525A30G10 | SCG-5 800:5 7525A30G12 | SCG-5 1000:5 7525A30G13 | SCG-5 1200:5 7525A30G14 | SCG-5 1500:5 7525A30G15 | SCG-5 2000:5 7525A30G17 | SCG-5 2500:5 7525A30G18 | SCG-5 3000:5 7525A30G19 | SCG-5 4000:5 7525A30G20
Product features
• 600 volt indoor
• 10 kV BIL
• Primary amperes: 50–4000
• Mechanical rating: 180 x rated current
• UL recognized component file no. E96461*
* Evaluated to United States and Canadian National Standards

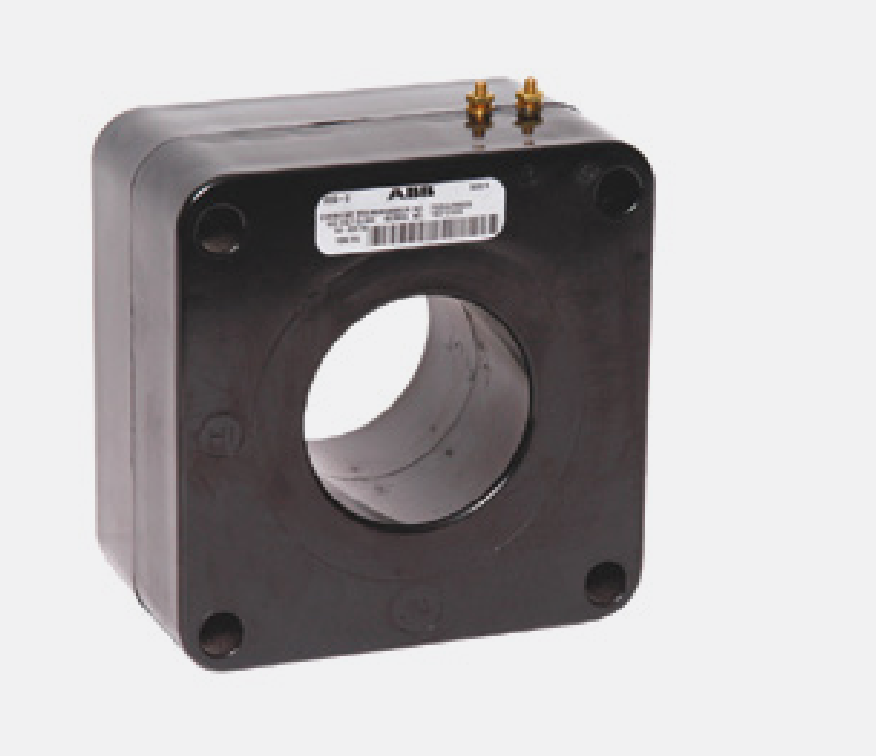

Construction features
The ring-type core is insulated and toroidally wound
with a fully distributed secondary winding.
The protective case, made of impact-resistant
polycarbonate, is ultrasonically sealed.
Secondary terminals
Secondary terminals are 10–32 brass terminal studs
with hardware.
Curves
Saturation, overcurrent, ratio correction factor
and phase-angle curves are available upon request.
Test reports
IEEE test reports are stored electronically and can be
emailed in various formats at the time of shipment.
Standards
This unit meets all applicable IEEE and NEMA
standards and is a UL recognized component.
