Variant Cut Sheets
200:5 7525A44G01 | 300:5 7525A44G02 | 400:5 7525A44G03 | 500:5 7525A44G05 | 600:5 7525A44G06 | 800:5 7525A44G08 | 1000:5 7525A44G09 | 1200:5 7525A44G10 | 1500:5 7525A44G11 | 1600:5 7525A44G12 | 2000:5 7525A44G13 | 2500:5 7525A44G14 | 3000:5 7525A44G15 | 4000:5 7525A44G17
Product features
− 600 volt indoor, 10 kV BIL
− 25 through 400 Hertz
− Primary amperes: 200-4000
− 4.25" window
Application

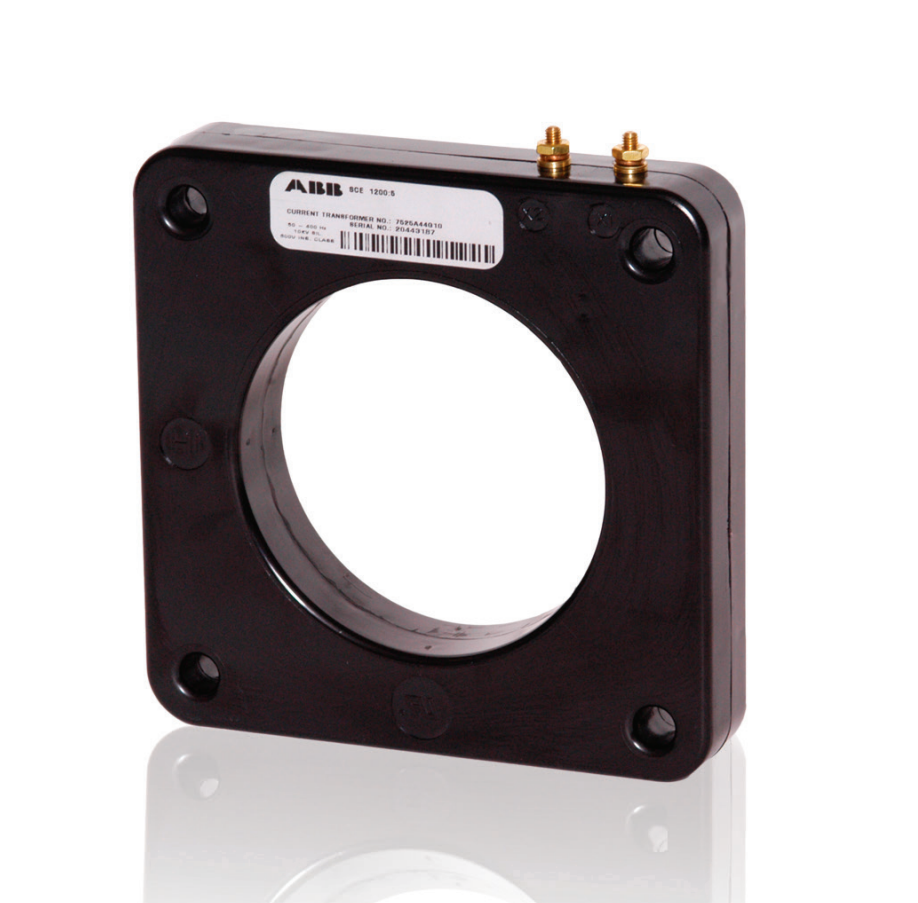

The SCE current transformer is used as the source of current for
relaying and metering.
Construction features
The ring-type core is insulated and toroidally wound with a fully
distributed secondary winding. The protective case, made of an
impact-resistant polycarbonate, is ultrasonically sealed.
Secondary terminals
Secondary terminals are 10-32 brass terminal studs with
hardware.
Curves
Saturation, overcurrent, ratio correction factor, and phase-angle
curves are available upon request.
Test reports
IEEE test reports are stored electronically and can be e-mailed
in various formats at the time of shipment.
Standards
This unit meets all applicable IEEE and NEMA standards and is
a UL Recognized Component.
