Description
Call for Price: (800)-766-1212
Variant Cut Sheets
SCB-1 200:5 7525A20G01 | SCB-1 300:5 7525A20G02 | SCB-1 400:5 7525A20G03 | SCB-1 600:5 7525A20G04 | SCB-1 800:5 7525A20G05 | SCB-1 1000:5 7525A20G06 | SCB-1 1200:5 7525A20G07 | SCB-1 1500:5 7525A20G08 | SCB-1 2000:5 7525A20G09 | SCB-1 2500:5 7525A20G10 | SCB-1 3000:5 7525A20G11 | SCB-1 4000:5 7525A20G12
SCB-1 Multi-Ratio 600 MR 7525A20G13 | SCB-1 Multi-Ratio 1200 MR 7525A20G14 | SCB-1 Multi-Ratio 2000 MR 7525A20G15 | SCB-1 Multi-Ratio 3000 MR 7525A20G16 | SCB-1 Multi-Ratio 4000 MR 7525A20G17
SCB-2 200:5 7525A24G01 | SCB-2 300:5 7525A24G02 | SCB-2 400:5 7525A24G03 | SCB-2 600:5 7525A24G04 | SCB-2 800:5 7525A24G05 | SCB-2 1000:5 7525A24G06 | SCB-2 1200:5 7525A24G07 | SCB-2 1500:5 7525A24G08 | SCB-2 2000:5 7525A24G09 | SCB-2 2500:5 7525A24G10 | SCB-2 3000:5 7525A24G11 | SCB-2 4000:5 7525A24G12
SCB-2 Multi-Ratio 600 MR 7525A24G13 | SCB-2 Multi-Ratio 1200 MR 7525A24G14 | SCB-2 Multi-Ratio 2000 MR 7525A24G15 | SCB-2 Multi-Ratio 3000 MR 7525A24G16 | SCB-2 Multi-Ratio 4000 MR 7525A24G17
Product features
• 600 volt, indoor, 10 kV BIL
• 25-400 Hertz
Application

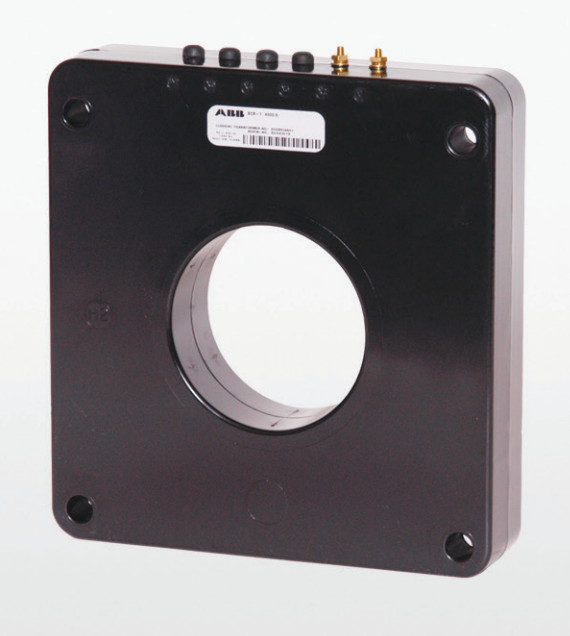

The SCB current transformer is designed for use in relaying and metering applications including, but not
limited to, various types of medium voltage switchgear, and is available in two internal window diameter
sizes. Dual and multi-ratio designs are also available
upon request.
Construction features
The ring-type core is insulated and toroidally wound
with a fully distributed secondary winding. The protective case, made of an impact-resistant polycarbonate, is ultrasonically sealed.
Secondary terminals
Secondary terminals are 10-32 brass terminal studs
with hardware.
Curves
Saturation, overcurrent, ratio correction factor, and
phase-angle curves are available upon request.
Test reports
IEEE test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards as
requested.
UL Recognized Component
The SCB is a UL Recognized Component (file
number E96461).
