Description
Call for Price: (800)-766-1212
Variant Cut Sheets
SCA 200:5 7525A48G01 | SCA 300:5 7525A48G02 | SCA 400:5 7525A48G03 | SCA 600:5 7525A48G04 | SCA 800:5 7525A48G05 | SCA 1000:5 7525A48G06 | SCA 1200:5 7525A48G07 | SCA 1500:5 7525A48G08 | SCA 2000:5 7525A48G09 | SCA 2500:5 7525A48G10 | SCA 3000:5 7525A48G11 | SCA 4000:5 7525A48G12
SCA Multi-Ratio 600 MR 7525A48G13 | SCA Multi-Ratio 1200 MR 7525A48G14 | SCA Multi-Ratio 2000 MR 7525A48G15 | SCA Multi-Ratio 3000 MR 7525A48G16 | SCA Multi-Ratio 4000 MR 7525A48G17
Product features
• 600 volt, indoor, 10 kV BIL
• 25-400 Hertz
• Approximate weight: 38 lbs (17 kg)
Application

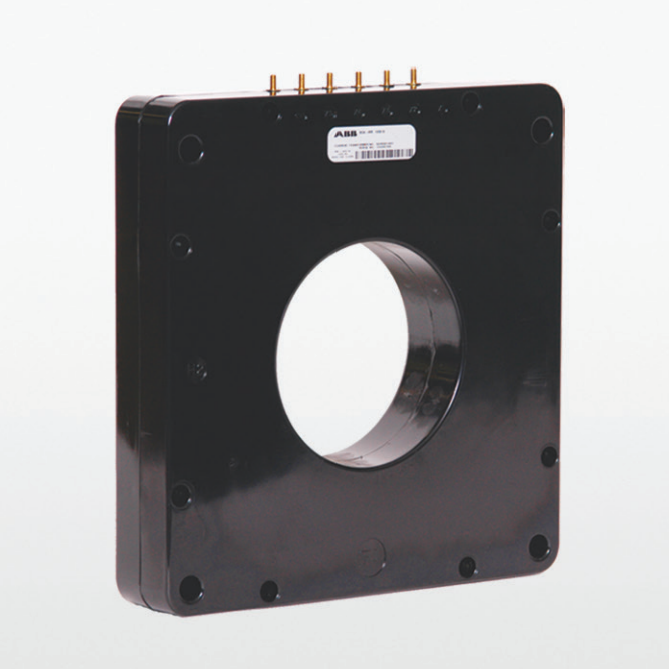

The SCA current transformer is designed for use in
relaying and metering applications including, but not
limited to, various types of medium voltage
switchgear.
Construction features
The ring-type core is insulated and toroidally wound
with a fully distributed secondary winding. The protective case, made of an impact-resistant polycarbonate, is assembled using self-tapping screws. Multiratio designs are also available.
Secondary terminals
Secondary terminals are 10-32 brass stud-type.
Curves
Saturation, overcurrent, ratio correction factor, and
phase-angle curves are available upon request.
Test reports
IEEE test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards as
requested.
UL Recognized Component
The SCA is a UL Recognized Component (file
number E96461).
