Description
Call for Price: (800)-766-1212
Variant Cut Sheets
RLC 800:5 7524A52G02 | RLC 1000:5 7524A52G04 | RLC 1200:5 7524A52G05 | RLC 1500:5 7524A52G06 | RLC 2000:5 7524A52G07 | RLC 3000:5 7524A52G08 | RLC 4000:5 7524A52G09 | RLC 600/1200 7524A52G10 | RLC 1000/2000 7524A52G12 | RLC 1500/3000 7524A52G13 | RLC 2000/4000 7524A52G14
RLC Hi-Accuracy 1000:5 9625A21G01 | RLC Hi-Accuracy 2000:5 9625A21G02 | RLC Hi-Accuracy 3000:5 9625A21G03 | RLC Hi-Accuracy 4000:5 9625A21G04 | RLC Hi-Accuracy 1000/2000 9625A21G05 | RLC Hi-Accuracy 1500/3000 9625A21G06 | RLC Hi-Accuracy 2000/4000 9625A21G07
Product features
• 600 volt, indoor or outdoor
• 10 kV BIL, 25 - 60 Hertz
• 5.5" (140 mm) window size
• Window plates and bar-types available
• Available with junction box
Application

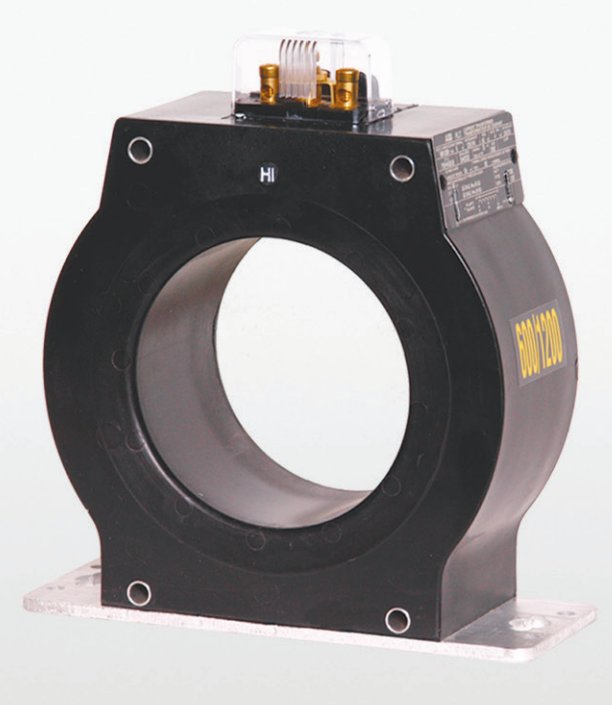

The RLC is designed for high burden metering and
relaying applications and is available in single or dual
ratios. It may be used with uninsulated bus bar or
cable up to 600 volts, or with insulated primary
conductors at higher voltages.
Construction and insulation
The ring-type core and fully distributed winding are
assembled to a glass filled polypropylene window
liner and injection molded in thermoplastic rubber.
The thermoplastic rubber insulating material is permanently molded to the core and coil assembly, resulting in a compact unit with excellent mechanical,
thermal, and dielectric characteristics.
Secondary terminals and cover
The RLC is supplied with large compression-type terminals with slotted head screws, a short circuit device, and a clear, rectangular snap-on cover suitable
for locking with a meter seal. This clear plastic cover
allows a visual check of connections and is keyed to
ensure the shorting clip is across the terminals when
no wires are connected. This safety feature avoids
dangerous voltages across the secondary terminals if
the primary is energized. The center post also serves
as a third terminal on dual ratio transformers.
Base
The base is constructed of corrosion-resistant aluminum and secured to the encapsulated base support by
four symmetrically located screws.
Test reports
Test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards as
requested.
UL Recognized Component
The RLC is a UL Recognized Component (file number
E96461).
