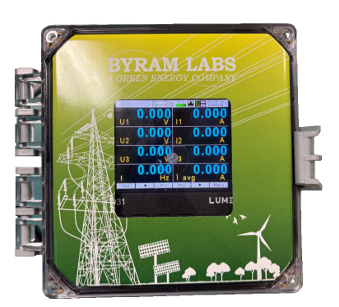

Model: The Byram B31 with Ethernet
Part Number: BYR-B31-208005
Call or email for availability
Cut Sheet
Features:
• Measurement of 54 power network parameters, including current and voltage harmonics up to 63rd in 1-phase 2-wire or 3-phase 3 or 4-wire balanced and unbalanced systems.
• Programmable choice of communication protocols: MQTT, BACnet / IP lub MODBUS TCP/IP.
• High accuracy class (0.2S for active energy).
• Graphical color display: LCD TFT 3,5’’, 320 x 240 pixels, fully configurable by a user (10 screens, 8 parameters in each).
• Additional 2 screens for harmonics presentation and 1 dedicated page for visualization in the form of an analog meter.
• Memory of minimum and maximum values.
• 2 configurable alarm outputs.
• Supervisory relay mode for alarm outputs.
• Archiving of up to 32 measured parameters in the internal memory 8 GB.
• Digital output RS-485 - MODBUS protocol.
• Modern and user-friendly Ethernet interface 10/100 BASE-T:
• protocol: MODBUS TCP/iP, HTTP, FTP,
• protocol: MQTT,
• protocol: BACnet/IP,
• Analog output 0/4...20 mA for retransmission of the measured value and two Pt 100 inputs (eg. for measurement of transformer temperature).
• services: www server, ftp server, DHCP client, NTP server.
• Programming of parameters using free eCon software.
• Overall dimensions: 96 x 96 x 77 mm.
The “Byram” B31 Three Phase meter was designed to meet today's most demanding commercial and industrial requirements.
The B31MOD offers a solution for DOE (Department of Energy) and IECC (International Energy Conservation Code) Chapter 4 section C405.12 Comprehensive energy monitoring and sub-metering in new and commercial buildings.
The “Byram” B31 represents one of the most modern mutifunction sub meter available today. Building on the still available platform of the B20 and B30 meters, the B31 includes many of the popular communications used today – All in one meter.
Measurement and Visualization of Power Network Parameters
Phase Voltages: U₁, U₂, U₃
Phase-to-Phase Voltages: U₁₂, U₂₃, U₃₁
Phase Currents: I₁, I₂, I₃
Active Phase Powers: P₁, P₂, P₃
Reactive Phase Powers: Q₁, Q₂, Q₃
Apparent Phase Powers: S₁, S₂, S₃
Active Power Factors: PF₁, PF₂, PF₃
Reactive/Active Power Factors: tgφ₁, tgφ₂, tgφ₃
Active, Reactive and Apparent 3-Phase Power: P, Q, S
Mean 3-Phase Power Factors: PF, tgφ
Frequency: f
Mean 3-Phase Voltage: Uₛ
Mean Phase-to-Phase Voltage: Umf
Mean 3-Phase Current: Iₛ
15, 30, 60 Minutes' Mean Active Power: P demand
Mean Apparent Power: S demand
Average Current: I demand
Active, Reactive and Apparent 3-Phase Energy: EnP, EnQ, EnS
Active, Reactive and Apparent Energy from External Counter: EnPE
Total harmonic Content Coefficients for Phase Voltages and Currents THDᵤ₁, THDᵤ₂, THDᵤ₃, THDᵤ₁₁, THDᵤ₁₂, THDᵤ₁₃ and for 3-Phase Voltages and Currents THDᵤ, THDᵢ
Harmonics for Current and Phase Voltage up to 63rd!
Temperature (2 x Pt100 input)
