Model Number: 100:5, Byram 7SFT101
Ordering Number: 7SFT101
Technical Specifications
-
Primary currents: Up to 100 Amps
-
Secondary current: 5 amps
-
Frequency: 60hz
-

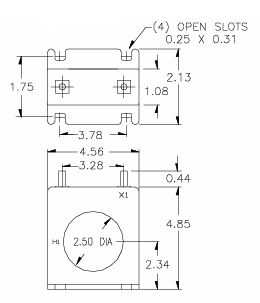

Inner diameter: 2.5" [63.5mm]
-
Outer diameter: 4.56" [115.82mm] x 5.29" [134.37mm]
Application:
With ammeters, wattmeters, and cross current compensation
Frequency
50-400 Hz
Insulation Level
600 Volts, 10 kV BIL full wave
General Information
Flexible leads are UL 1015, 105°C, CSA approved, #16 AWG, 24” long.
Non-standard length to be specified.
Terminals are brass studs No. 8-32 with one flat washer, lockwasher and regular nut
Approximate weight 1.5 lbs
