Description
Call for Price: (800)-766-1212
Variant Cut Sheets
KIR-60 5:5 7524A01G01 | KIR-60 10:5 7524A01G02 | KIR-60 15:5 7524A01G03 | KIR-60 20:5 7524A01G04 | KIR-60 25:5 7524A01G05 | KIR-60 30:5 7524A01G06 | KIR-60 40:5 7524A01G07 | KIR-60 50:5 7524A01G08 | KIR-60 75:5 7524A01G09 | KIR-60 100:5 7524A01G10 | KIR-60 150:5 7524A01G11 | KIR-60 200:5 7524A01G12 | KIR-60 300:5 7524A01G13 | KIR-60 400:5 7524A01G14 | KIR-60 500:5 7524A01G19 | KIR-60 600:5 7524A01G15 | KIR-60 800:5 7524A01G16 | KIR-60 1000:5 7524A01G21 | KIR-60 1200:5 7524A01G20
KIR-75 5:5 7524A02G01 | KIR-75 10:5 7524A02G02 | KIR-75 15:5 7524A02G03 | KIR-75 20:5 7524A02G04 | KIR-75 25:5 7524A02G05 | KIR-75 30:5 7524A02G06 | KIR-75 40:5 7524A02G07 | KIR-75 50:5 7524A02G08 | KIR-75 75:5 7524A02G09 | KIR-75 100:5 7524A02G10 | KIR-75 150:5 7524A02G11 | KIR-75 200:5 7524A02G12 | KIR-75 300:5 7524A02G13 | KIR-75 400:5 7524A02G14 | KIR-75 600:5 7524A02G15 | KIR-75 800:5 7524A02G16
KIR-11 5:5 7524A03G01 | KIR-11 10:5 7524A03G02 | KIR-11 15:5 7524A03G03 | KIR-11 20:5 7524A03G04 | KIR-11 25:5 7524A03G05 | KIR-11 30:5 7524A03G06 | KIR-11 40:5 7524A03G07 | KIR-11 50:5 7524A03G08 | KIR-11 75:5 7524A03G09 | KIR-11 100:5 7524A03G10 | KIR-11 150:5 7524A03G11 | KIR-11 200:5 7524A03G12 | KIR-11 300:5 7524A03G13 | KIR-11 400:5 7524A03G14 | KIR-11 600:5 7524A03G16 | KIR-11 800:5 7524A03G17 | KIR-11 1000:5 7524A03G21 | KIR-11 1200:5 7524A03G18
Product features
• KIR-60: 5 kV, 60 kV BIL
• KIR-75: 8.3 kV, 75 kV BIL
• KIR-11: 15 kV, 110 kV BIL
• Indoor, 60 Hertz
• UL Recognized Components: File No. E96461
Application

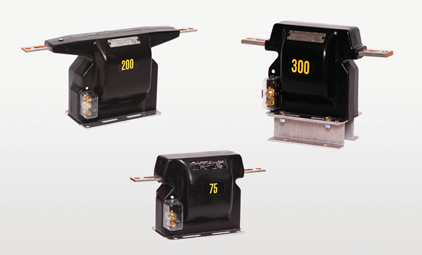

The KIR-60, KIR-75, and KIR-11 indoor current
transformers are designed for relaying and metering
applications. KIR current transformers are cast in
polyurethane and applications include, but are not
limited to, medium voltage switchgear. Designs are
available with single and dual ratio designs which are
accomplished by tapping the secondary winding.
Secondary terminals and cover
The KIR is supplied with embedded compression-type
secondary terminals, a short circuit device, and a
clear, rectangular snap-on cover. This clear plastic
cover allows a visual check of connections and is
keyed to ensure the shorting clip is across the
terminals when no wires are connected. This safety
feature avoids dangerous voltages across the
secondary terminals if the primary is energized.
Terminals accommodate #14-#1 wire and can also
serve as a post-type connector by looping wire under
the slotted hex-head screw head.
Baseplate
The baseplate is constructed of corrosion-resistant
aluminum and is secured to the encapsulated
base support.
Mounting
The KIR-60, KIR-75, and KIR-11 can be mounted in
upright, cantilever, or upside-down positions.
Test reports
Test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards
as requested.
