Fluke 87V MAX /E2 Industrial Electrician Combo Kit

Model: Fluke 87V/E2 Industrial Electrician Combo Kit

Part Number: 87V/E2 Kit

Ordering Number: 1A0810

Datasheet

This combo kit is built around the Fluke 87V, the most widely used industrial digital multimeter in the world, and includes special accessories to make you even more productive on the job. This kit will save over 15% compared with the individual price of all the accessories. Plus you'll be working with the most trusted tools in the world.

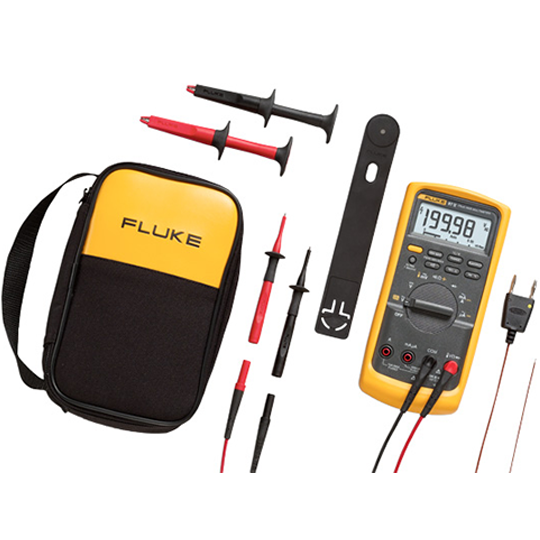

Includes:

• 87V Industrial Multimeter
• TL224 SureGrip™ Insulated Test Leads
• AC220 SureGrip™ Alligator Clips
• TL238 SureGrip™ Test Probes
• ToolPak™ Magnetic Meter Hanging Kit
• 80BK-A DMM Temperature Probe
• C35 Soft Carrying Case
• 9V battery (installed)

Size	201 x 98 x 52 mm (with holster)
Weight	355 g 624 g - with holster
Display	Digital	6000 counts updates 4/sec. 19,999 counts in high-resolution mode
	Analog	32 segments, updates 40/sec.
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Warranty	Lifetime
Battery Life	Alkaline	~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010-1:2001
Vibration	Per MIL-PRF-28800 for a Class 2 instrument

Features

• Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment
• Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument
• Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
• Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models
• True-rms ac voltage and current for accurate measurements on non linear signals
• Selectable filter for accurate voltage and frequency measurements on motor drives
• 0.05% DC accuracy
• 6000 counts, 3-3/4 digits
• 4-1/2 digit mode for precise measurements (20,000 counts)
• Measure up to 1000 V AC and DC
• Measure up to 10 A, 20 A for up to 30 seconds
• Built in thermometer lets you carry one less tool (TC probe included)
• Frequency to 200 kHz and % duty cycle
• Resistance, continuity and diode test
• 10,000 µF capacitance range for components and motor caps
• Min/Max-Average recording with Min/Max Alert to capture variations automatically
• Peak capture to record transients as fast as 250 µs
• Relative mode to remove test lead interference from low ohms measurements
• Auto and manual ranging for maximum flexibility
• Touch Hold to capture stable readings avoiding noisy signals
• Large display digits and two-level bright white backlight for increased visibility
• Analog bargraph for fast changing or unstable signals
• Input Alert provides audible warning against wrong use of input jacks
• Improved selectable sleep mode for long battery life
• Access door for fast battery changes without breaking the calibration seal
• "Classic" design with new removable holster with built in test lead and probe storage
• Lifetime warranty

Specifications

Voltage DC	Maximum Voltage	1000 V
	Accuracy	±(0.05% + 1)
	Maximum Resolution	10 µV
Voltage AC	Maximum Voltage	1000 V
	Accuracy	±(0.7% + 2) True RMS
	AC Bandwidth	20 kHz with low pass filter; 3 db @ 1 kHz
	Maximum Resolution	0.1 mV
Current DC	Maximum Amps	10 A (20 A for 30 seconds maximum)
	Amps Accuracy	±(0.2% + 2)
	Maximum Resolution	0.01 µA
Current AC	Maximum Amps	10 A (20 A for 30 seconds maximum)
	Amps Accuracy	±(1.0% + 2) True RMS
	Maximum Resolution	0.1 µA
Resistance	Maximum Resistance	50 MΩ
	Accuracy	±(0.2% + 1)
	Maximum Resolution	0.1Ω
Capacitance	Maximum Capacitance	9,999 µF
	Accuracy	±(1% + 2)
	Maximum Resolution	0.01 nF
Frequency	Maximum Frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum Resolution	0.01 Hz
Duty Cycle	Maximum Duty Cycle	99.9%
	Accuracy	±(0.2% per khz +0.1%)
	Maximum Resolution	0.1%
Temperature Measurement	-200.0°C - 1090°C -328.0°F - 1994.0°F excluding probe
80 BK Temperature Probe	-40.0°C - 260°C -40.0°F - 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum Conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum Resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty Cycle Range	Accuracy	Within ±(02% per kHz +0.1%)

Environmental Specifications
Operating Temperature	-20°C to +55°C
Storage Temperature	-40°C to +60°C
Humidity (Without Condensation)	0% - 90% (0°C - 35°C) 0% - 70% (35°C - 55°C)
Operating Altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010-1 to 1000 V CAT III, 600V CAT IV
Agency Approvals	UL, CSA, TÜV, VDE listed
