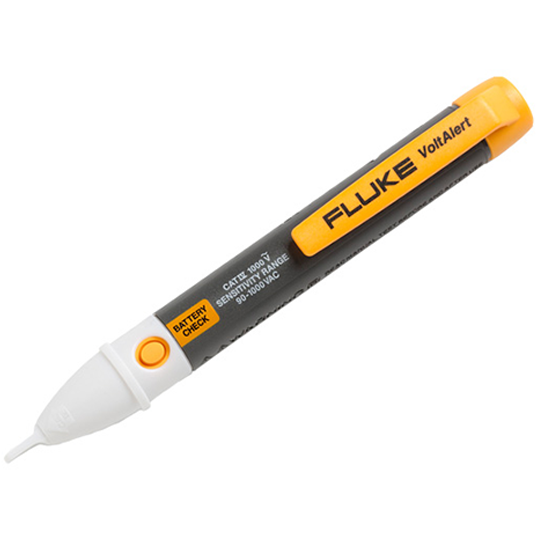

Fluke 2AC VoltAlert Electrical Tester (5 Pack)

Fluke

$148.94
SKU: 1A0624

Model: Fluke 2AC VoltAlert Electrical Tester (5 Pack)

Part Number: FLK2AC/90-1000VC 5Pk

Ordering Number: 1A0624

Datasheet

Always on for faster, safer voltage testing

2AC is the latest addition to the VoltAlert™ AC non-contact voltage tester family from Fluke and is designed to be pocket-sized and easy to use. The 2AC tests for energized circuits and defective grounds, whether it's for an electrician on the factory floor or the do-it-yourselfer around the house. The tip of the pocket-sized tester will glow red when within close proximity of an outlet, terminal strip, or power cord where voltage is present.

  • Voltage detection from 90 to 1000 V AC, suitable for a wide range of residential, commercial and industrial needs
  • NEW! Always on, using special low power circuitry to sustain battery life and ensure your 2AC is always ready
  • NEW! Innovative 'Battery Check' button function ensures battery is in good condition*
  • CAT IV 1000 V overvoltage rated product for best in class user protection
  • Expanded range: 90 V AC to 1000 V AC
  • Integrated clip design, optimized for pocket storage
  • Powered by 2x AAA batteries (included)
  • Fluke ruggedness and reliability
  • Two-year warranty

* Use of Battery Check function is optional and for convenience only, it is not intended as a substitute for checking the unit on a known live source before and after use.

Operating Principles Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip indicates the presence of voltage.
Safety Compliance Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
EMC Compliance Meets IEC 61326-1:2006
Operating 90 V AC to 1000 V AC, CAT IV 1000 V rated
Temperature (Operating and Storage) -10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges 0% to 95% (0°C to 30°C)
0% to 75% (30°C to 40°C)
0% to 45% (40°C to 55°C)
Altitude 2000 m (CAT IV 1000 V)
Cleaning Clean with damp cloth
Battery Life Typical battery life of greater than one year
Warranty Period Two years
