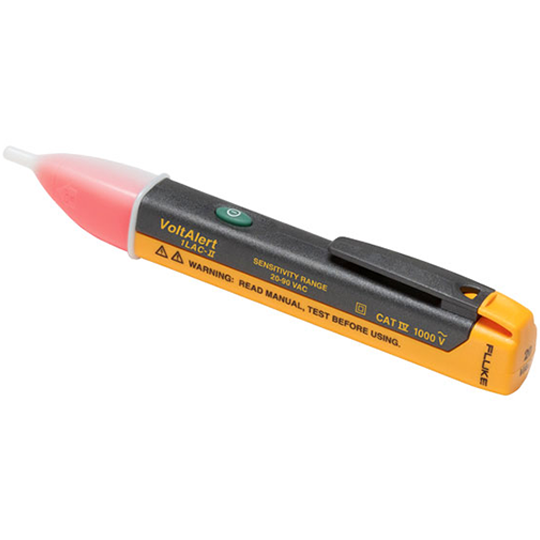

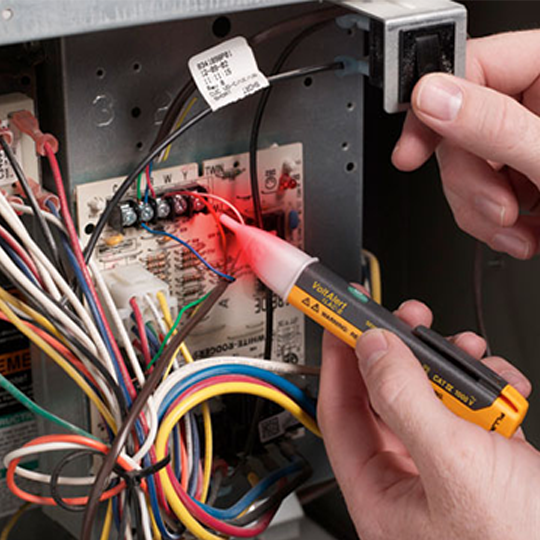

The next generation VoltAlert™ AC non-contact voltage testers from Fluke are easy to use – just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there's voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Features
Voltbeat™ technology and continuous self-test – so you always know it's working
Upon detection, tip glows and beeper sounds
CAT IV 1000 V for added protection
Expanded range: 90 V AC to 1000 V AC
20 V to 90 V AC control circuit model also available
Two-year warranty
Batteries included
On/Off Button
Audible/Silent
Specifications
Operating Principles
Senses the steady state electrostatic field produced by AC voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.
Voltage sensing ranges
20 V to 90 V control circuit model
Detector tip style
Round-tip
Light source
One high intensity red LED
Agency Approvals
c CSA us, CE, C-Tick
Safety Rating
1000 V, CAT IV
Safety Compliance
Meets IEC 61010-1:2001, UL 61010-1 (2nd ed.), CAN/CSA-C22.2 No. 61010-1-04, and ISA-82.02.01 Pollution Degree 2
EMC Compliance
Meets IEC 61326-1:2006
IP Rating
IP 40
Operating Temperature
-10°C to 50°C (-14°F to 122°F)
Operating Humidity Ranges
0% to 95% (0°C to 30°C)
0% to 75% (30°C to 40°C)
0% to 45% (40 to 55°C)
Operating Altitude
3000 m
Cleaning
Clean with damp cloth
Batteries
2 AAA alkaline batteries included
Battery Life
Typical battery life of greater than 1 year
Warranty Period
Two years
Product does not respond to random electrostatic discharge.
