Description

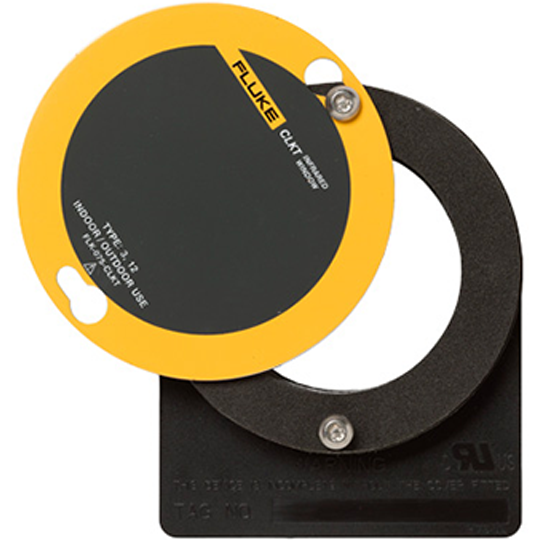

Model: Fluke 075 CLKT IR Window for Indoor & Outdoor Applications
Part Number:075 CLKT
Ordering Number: 1A1059
Save Time and Conduct More Efficient Electrical Infrared Inspections

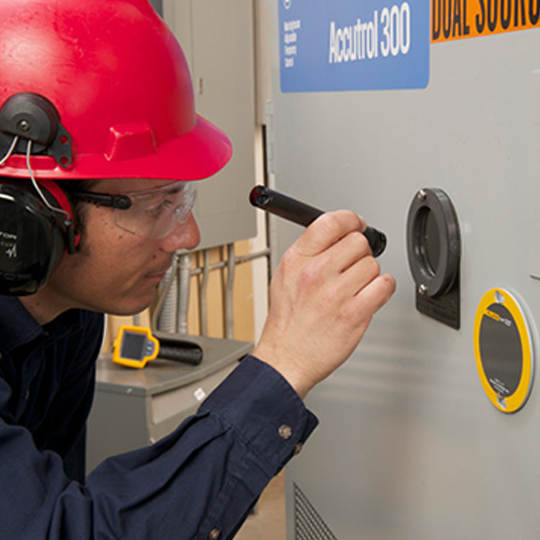

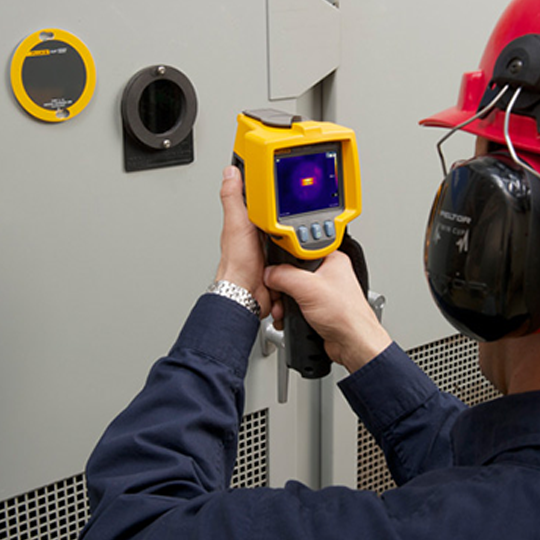

Once you've installed a Fluke infrared window there is no more need to power down or remove panel doors – you may never have to open the panel door again. Inspections are now conducted quickly, easily and safer than they were before.
Your greatest investment is not what's behind the panel door; your priority is to offer the ultimate protection for the electricians, engineers and inspectors who risk their lives every day doing their jobs.
| Optic Data Specifications | ||
| Crystal insert diameter | 75 mm (2.96 in) | |
| Viewing aperture diameter | 68 mm (2.7 in) | |
| Viewing aperture area | 3632 mm2 (5.63 in2) | |
| >td colspan="2">2 mm (0.08 in) | ||
| ClirVu coating | Yes | |
| Shortwave IR capable | Yes | |
| Midwave IR capable | Yes | |
| Longwave IR capable | Yes | |
| Ultraviolet (UV) capable | Yes | |
| Visual capable | Yes | |
| Fusion capable | Yes | |
| UL50 environmental | Type 3/12 | |
| UL746C | N/A (Polymer Free) | |
| UL94 | N/A (Polymer Free) | |
| Canadian Standards Association (CSA) approval | Yes | |
| Environmental | Type 3/12 | |
| KEMA (Arc-Testing) | ||
| ANSI C37.20.7 | 50 kA for 30 cycles @ 60 Hz | |
| EEMACS 14-1 Type-B | 40 kA for 30 cycles @ 60 Hz | |
| ASTA (Arc-Testing) | ||
| IEC 62271 | 20 kA for 5 cycles @ 50 Hz | |
| TUV | ||
| Cyclic humidity withstand | Yes | |
| Vibration withstand | Yes | |
| NEMKO | ||
| Resistance of insulating materials to 100° | Yes | |
| Resistance of insulating material to ball pressure (Brinell) | Yes | |
| Glow-wire test 650°C | Yes | |
| Lloyds Register | ||
| Up to 11 kV marine switchgear, indoor or outdoor | Yes | |
| General Specifications | ||
| Maximum temperature | Gaskets | 250°C (482°F) |
| Body | 659°C (1219°F) | |
| Optic | 1400°C (2552°F) | |
| Gaskets | Low smoke and fume (LSF) compliant silicone | |
| IP rating | IP65 | |
| Vibration rating | IEC60068-2-6 | |
| Humidity rating | IEC60068-2-3 | |
| Pull-out strength | Up to 630 kg (1388 lb) | |
| Warranty | Lifetime replacement against manufacturing defects | |
