Description

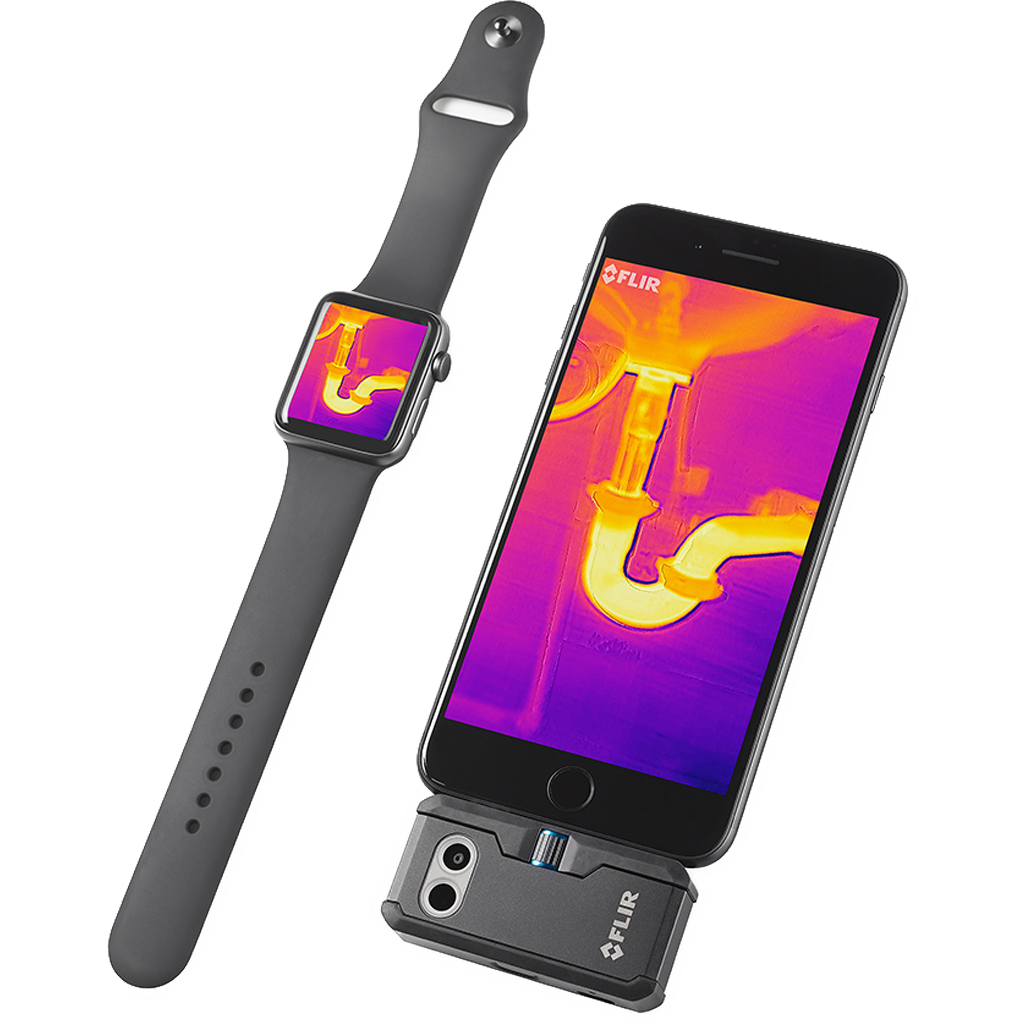

Model: FLIR ONE Pro Pro-Grade Thermal Camera for Smart phones
Part Number: ONE Pro
Ordering Number: 1C9648
The FLIR ONE Pro lets you find invisible problems faster than ever. Measuring temperatures up to 400 °C (752 °F) and packing powerful measurement tools, FLIR ONE Pro will work as hard as you do. Whether you’re inspecting electrical panels, looking for HVAC problems, or finding water damage, the FLIR ONE Pro is a tool no serious professional should be without.
IMAGE DETAIL & CLARITY
- With a 4x improvement in thermal resolution, and VividIR™ image processing, FLIR ONE Pro gives you the ability to see more detail when it matters most.
EXPANDED MEASUREMENT
- Measure temperatures between -4°F and 752°F (-20° to 400°C) with up to three spot temperature meters and six temperature regions of interest.
JOBSITE TOUGH
- Built to take the abuse that working on a jobsite dishes out every day, FLIR One Pro is rated to take a drop from 1.8 meters and is built to last.
Specifications
-
- Non-Operating Temperature
- -20 °C – 60 °C (-4°F – 140°F)
- Scene Dynamic Range
- -20°C – 400°C, -4°F - 752°F
- Spot Meter
- Off / °C / °F. Resolution 0.1°C / 0.1°F
- Dimensions (H x W x D)
- 68 x 34 x 14mm (2.7 x 1.3 x 0.6in)
- Phone
- iOS
APP
- Adjustable MSX distance
- 0.3m — Infinity1
- Battery charge monitor
- 0 – 100%
- Capture modes
- Video, Still image, Time lapse
- File Formats
- Still images – radiometric jpeg
- Palette
- Gray (white hot), Hottest, Coldest, Iron, Rainbow, Contrast, Arctic, Lava and Wheel.
- Video and Still Image Display/Capture
- Saved as 1440x1080
Compliance
- Certifications
- MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233
Connections
- Charging
- Female USB-C (5V/1A)
- Video
- Male Lightning
Environmental
- Emissivity Settings
- Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30%
- Mechanical shock
- Drop from 1.8m
- Operating Temperature
- 0 °C – 35 °C (32°F – 95°F) , battery charging 0 °C – 30 °C (32°F – 86°F)
Imaging
- Focus
- Fixed 15cm – Infinity
- Frame Rate
- 8.7Hz
- General Description
- Thermal and Visual Cameras with MSX
- HFOV/VFOV
- 55° ± 1° / 43° ± 1°
- Shutter
- Automatic/Manual
- Thermal Resolution
- 160x120
- Thermal Sensor
- Pixel size 12µm, 8 – 14µm spectral range
- Visual Resolution
- 1440x1080
Other
- Filter_CameraSeries
- FLIR ONE
Performance
- Accuracy
- ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15 °C – 35 °C and the scene is within 5 °C — 120 °C.
Power
- Battery charge time
- 40min
- Battery life
- Approximately 1h
Radiometry
- Thermal Sensitivity [MRDT]
- 150mK
