Variant Cut Sheets
DSM-16 100:5 449D701G01 | DSM-16 150:5 449D701G02 | DSM-16 200:5 449D701G03 | DSM-16 300:5 449D701G04 | DSM-16 400:5 449D701G05 | DSM-16 600:5 449D701G06 | DSM-16 800:5 449D701G07 | DSM-16 1200:5 449D701G08 | DSM-16 1500:5 449D701G18 | DSM-16 1600:5 449D701G09 | DSM-16 2000:5 449D701G10
DSM-32 200:5 449D701G11 | DSM-32 300:5 449D701G14 | DSM-32 400:5 449D701G15 | DSM-32 600:5 449D701G12 | DSM-32 800:5 449D701G13
DSM-40 4000:5 151D026G01 | DSM-40 5000:5 151D026G02 | DSM-40 6000:5 151D026G03
Product Features
• 600 Volt Indoor
• 10 kV BIL
• 25 through 400 Hertz
• Primary Amperes 100-6000
• Mechanical Rating:
180 x rated current
• Thermal Rating:
Refer to table on page 4
• Continuous Current Rating Factor:
Refer to table on page 4
• UL Recognized Component;
File No. E96461
Application

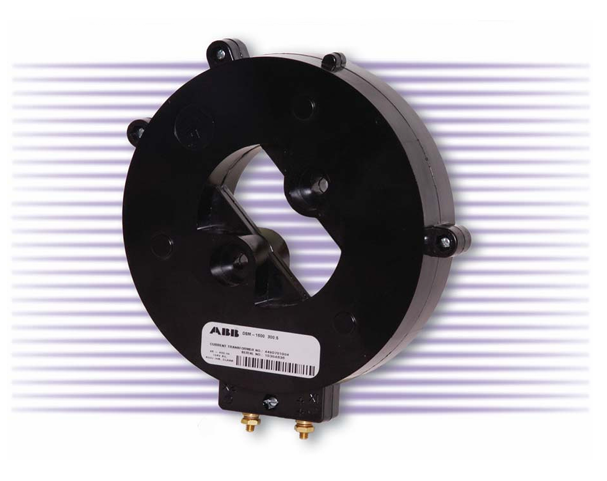

The DSM current transformer is dimensioned for bus structure
mounting on Cutler Hammer DS circuit breakers for metering
applications.
Construction Features
The DSM-16 and DSM-32 have a ring-type core that is insulated
and toroidally wound with a fully distributed secondary winding.
The protective case, made of an impact-resistant polycarbonate, is
assembled using self-tapping screws.
The DSM-40 has a ring-type core that is insulated and toroidally
wound with a fully distributed secondary winding. The entire
assembly is encapsulated in polyurethane.
Secondary Terminals
Secondary terminals are 10-32 brass terminal studs with hardware.
Curves
Saturation, overcurrent, ratio correction factor, and phase-angle
curves are available upon request.
Test Reports
IEEE test reports are stored electronically and can be e-mailed in
various formats at the time of shipment.
Standards
This unit meets all applicable IEEE and NEMA standards and is
a UL Recognized Component
