Model: The Byram B30 with MODbus
Part Number: BYR-B30-208005

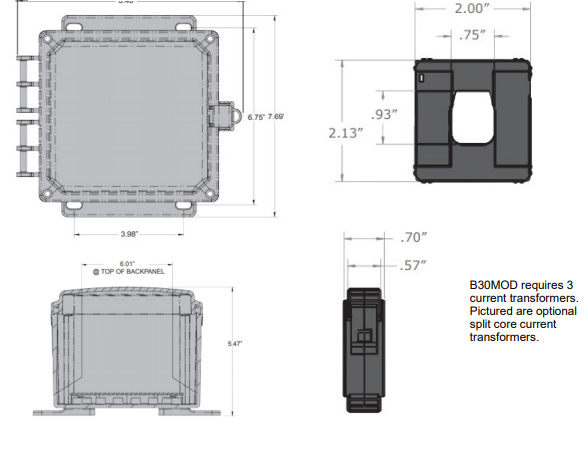

Cut Sheet
Features:
-Reliable, Revenue Grade 0.2%
-UV resistant polycarbonate enclosure
-IP66 sealed case maintains accuracy and prolongs meter life
-MODbus (RS485) with pulse for building automation systems.
-Quick and easy to install
-Measurement of 61 power parameters.
The “Byram” B30MOD Three Phase meter was designed to meet today's most demanding commercial and industrial requirements. The B30MOD offers 3 of the most popular automation communication protocols. Included is RS 485 MODBUS, one the most modern and user friendly interface, pulse output with an optional Ethernet.
Revenue Metering
The “Byram” B30MOD meter is a highly accurate revenue meter (0.2 accuracy Class).
Flexibility and Future Growth
The B30MOD series has been developed as a walk up and read meter. Meters are programmed for kWh readings (purchase of energy) but have an option for instrumentation metering*. Each B30MOD is furnished with a pulse output compatible with most Building Automation Systems (BAS).
Each B30MOD meter is capable of being upgraded with software to display or transmit optional electrical parameters.
Technical Specifications
-Operating Temperature: -20 to +70C
-Storage Temperature: -30 to +80C
-Relative Humidity: 0... 90% non condensing
-Warm Up Time: Minimum 3 minutes
-Shock: 15g in 3 planes
-Vibration: 10... 55... 10 Hz, 0.15mm amplitude
-Relay Contact: (1NO+1NC)
-Switching Voltage and Current for Relay: 240 VAC, 5A
Default Pulse Rate Divisor:
-1 per Wh (up to 3600W)
-1 per kWh (up to 3600kWh)
-1 per MWh (above 3600kW)
Other Pulse Rate Divisors:
-10 | 1 per 10 Wh (up to 3600W) | 1 per 10 kWh (up to 3600kWh) | 1 per 10 MWh (up to 3600kW)
-100 | 1 per 100 Wh (up to 3600W) | 1 per 100 kWh (up to 3600kWh) | 1 per 10 MWh (up to 3600kW)
-1000 | 1 per 1000 Wh (up to 3600W) | 1 per 100 kWh (up to 3600kWh) | 1 per 10 MWh (up to 3600kW)
