Description
Call for Price: (800)-766-1212
Variant Cut Sheets
CLE 2000:5 7524A63G01 | CLE 3000:5 7524A63G02 | CLE 4000:5 7524A63G03 | CLE 5000:5 7524A63G04 | CLE 6000:5 7524A63G05 | CLE 1000/2000 7524A63G06 | CLE 1500/3000 7524A63G07 | CLE 2000/4000 7524A63G08 | CLE 2500/5000 7524A63G09 | CLE 3000/6000 7524A63G10
Product features
• 600 volt, indoor or outdoor
• 10 kV BIL, 25 - 400 Hertz
• 8.25" (210 mm) window opening
• Window plates and bar-types available
Application

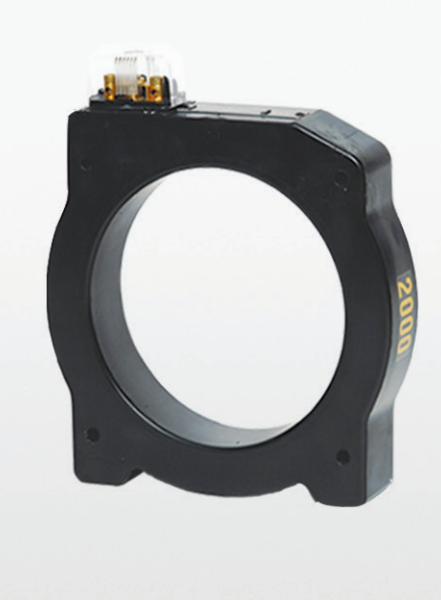

The CLE is primarily used for high current metering on
low voltage systems and is available in single or dual
ratios. It can be used with uninsulated bus bar or cable up to 600 volts, or with insulated primary conductors at higher voltages.
Construction and insulation
The ring-type core and fully distributed winding are
assembled to a glass filled polypropylene window
liner and injection molded in thermoplastic rubber.
The thermoplastic rubber insulating material is permanently molded to the core and coil assembly, resulting in a compact unit with excellent mechanical,
thermal, and dielectric characteristics.
Secondary terminals and cover
The CLE is supplied with large compression-type terminals with slotted head screws, a short circuit device, and a clear, rectangular snap-on cover suitable
for locking with a meter seal. This clear plastic cover
allows a visual check of connections and is keyed to
ensure the shorting clip is across the terminals when
no wires are connected. This safety feature avoids dangerous voltages across the secondary terminals if the
primary is energized. The center post also serves as a
third terminal on dual ratio transformers.
Primary
The large 8.25" (210 mm) window allows for multiple
primary conductors. Optional Micarta® window plates
are available to change the window opening to a cruciform configuration for direct bus bar sleeve mounting.
Mounting
Optional two-piece mounting feet are constructed of
corrosion-resistant aluminum. The CLE may also be secured to a wall panel or bracket by using mounting
holes in the transformer body.
Test reports
Test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards as
requested.
UL Recognized Component
The CLE is a UL Recognized Component (file number
E96461).
