Variant Cut Sheets
CLC 600:5 7524A58G16 | CLC 800:5 7524A58G01 | CLC 1000:5 7524A58G02 | CLC 1200:5 7524A58G03 | CLC 1500:5 7524A58G04 | CLC 2000:5 7524A58G05 | CLC 3000:5 7524A58G06 | CLC 4000:5 7524A58G07 | CLC 600/1200 7524A58G08 | CLC 800/1600 7524A58G09 | CLC 1000/2000 7524A58G10 | CLC 1500/3000 7524A58G11 | CLC 2000/4000 7524A58G12
Product features
• 600 volt, indoor or outdoor
• 10 kV BIL, 25 - 60 Hertz
• 5.5" (140 mm) window opening
• Window plates and bar-types available
Application
The CLC is primarily used for high current metering on
low voltage systems and is available in single or dual
ratios. It can be used with uninsulated bus bar or
cable up to 600 volts, or with insulated primary
conductors at higher voltages.
Construction and insulation
The ring-type core and fully distributed winding are
assembled to a glass filled polypropylene window
liner and injection molded in thermoplastic rubber.
The thermoplastic rubber insulating material is permanently molded to the core and coil assembly, resulting in a compact unit with excellent mechanical,
thermal, and dielectric characteristics.
Secondary terminals and cover
The CLC is supplied with embedded compressiontype secondary terminals, a short circuit device, and a
clear, rectangular snap-on cover suitable for locking
with a meter seal. This clear plastic cover allows a
visual check of connections and is keyed to ensure the
shorting clip is across the terminals when no wires are
connected. This safety feature avoids dangerous
voltages across the secondary terminals if the
primary is energized. Terminals accomodate #14-6
wire and can also serve as a post-type connector by
looping wire under the screw head.
Dual ratios are supplied with large compression-type
terminals with slotted head screws and a similar short
circuit device and cover. The center post also serves
as a third terminal on dual ratio transformers.
Primary

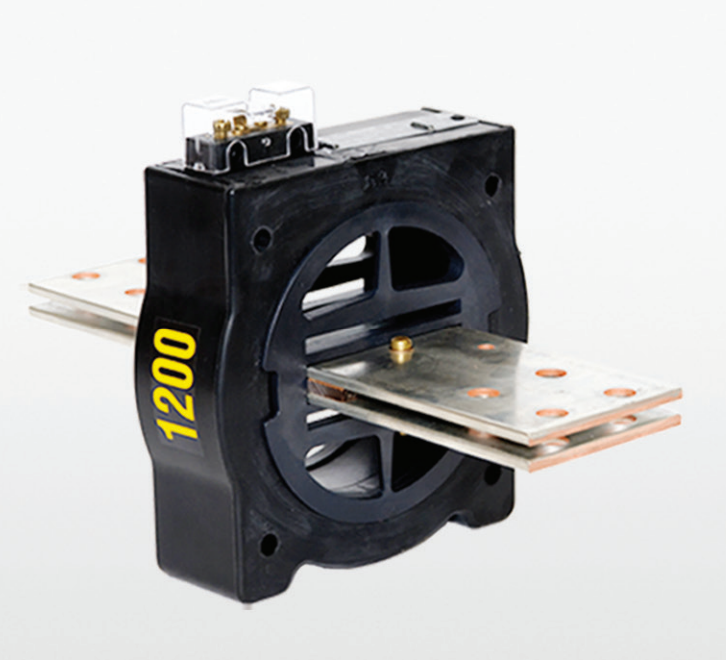

A large 5.5" window allows for multiple primary conductors. Optional Micarta® window plates are available to change the window opening to a cruciform
configuration for direct bus bar sleeve mounting.
Primary bar assemblies are available for converting
the CLC to a bar-type unit. These assemblies vary
from a single-bar for currents up to a maximum of
1950 amperes, to a four-bar assembly for a maximum
of 5100 amperes.
Mounting
Optional four-piece mounting feet or a one-piece
base are constructed of corrosion-resistant
aluminum. The CLC may also be secured to a wall
panel or bracket by using the mounting holes in the
transformer body.
Test reports
Test reports are stored electronically and can be
e-mailed in various formats at the time of shipment.
Standards
This unit meets or exceeds all requirements of IEEE
C57.13-2016 and can be tested to other standards as
requested.
UL Recognized Component
The CLC is a UL Recognized Component (file number
E96461).
