Model Number: Byram BL6800, split core, 2.00 inch X 5.50 inch window, with leads
Ordering Number: BYR-BL6-800-MA100
Technical Specifications
Primary currents: Up to 800 Amps
Secondary current: 100 milliAmps

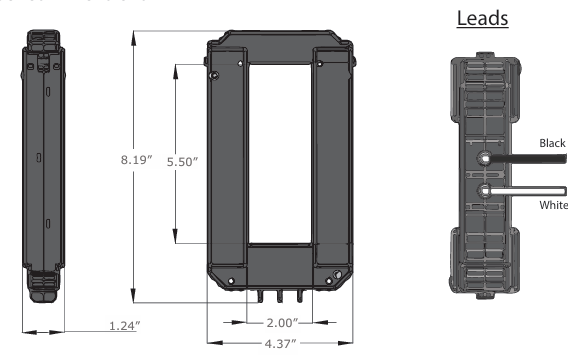

Inner diameter: 2" [50.8mm] x 5.5" [139.7mm]
Outer diameter : 4.37" [111mm] x 8.19" [208mm]
Features Applications
