Model Number: Byram BL5800, split core, 2.00" X 3.50" window, with leads
Ordering Number: BYR-BL5-800-MA100
Technical Specifications
-
Primary currents: Up to 800 Amps
-
Secondary current: 100 milliAmps
-

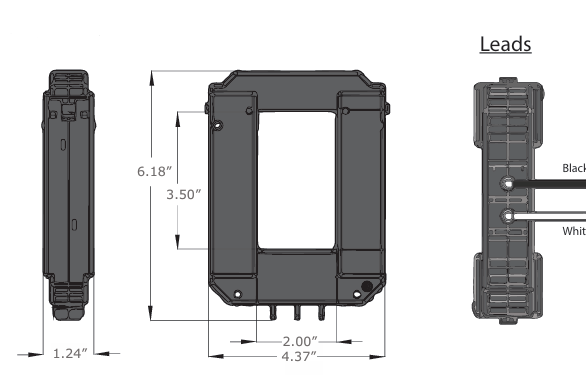

Inner diameter: 2" [50.8mm] x 3.5" [88.9mm]
-
Outer diameter: 4.37" [111] x 6.18" [157mm]
Features
• Secured latch & keying hole for locking/service tag
• Swing open for ease of installation
• Rigid housing case with UL rated durable plastic
• Indoor rated
• 6ft twisted pair leads
• Black/white leads
• BL-5 - 16AWG
Applications
• Energy and sub-metering products
• Electrical load monitoring
• Network equipment
• Instruments and sensors
• Control systems
• Go GREEN initiatives
