Model Number: Byram BL4400, 1.30" X 1.70" Window, with Leads Split Core
Ordering Number: BYR-BL4-400-MA100
Technical Specifications
-
Primary currents: Up to 400 Amps
-
Secondary current: 100 milliAmps
-
Frequency: 50/60 Hz
-

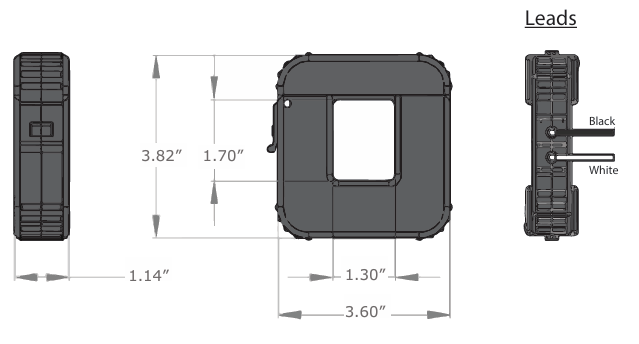

Inner diameter: 1.3" [33mm] x 1.7" [43.1mm]
-
Outer diameter: 3.6" [91.4] x 3.82" [97mm]
-
Rating Factors: Up to RF 1
-
Metering class: 0.5%
Features
• Secured latch & keying hole for locking/service tag
• Swing open for ease of installation
• Rigid housing case with UL rated durable plastic
• Indoor rated
• 6ft twisted pair leads
• Black/white leads
• BL-4 - 18AWG
Applications
• Energy and sub-metering products
• Electrical load monitoring
• Network equipment
• Instruments and sensors
• Control systems
• Go GREEN initiatives
