Model Number: 200A:100mADC, Custom CT Black & White leads
Ordering Number: BYR-BL3-200-MA100
Technical Specifications
-
Primary currents: Up to 200 Amps
-
Secondary current: 100 milliAmps
-

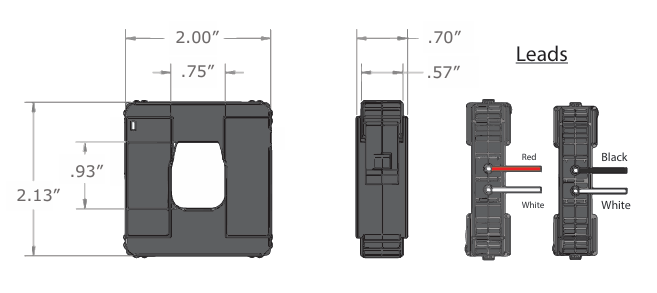

Inner diameter: .93" [23.6mm] x .75" [19mm]
-
Outer diameter: 2.13" [54.1] x 2" [50.8mm]
Features
• Secured latch & keying hole for locking/service tag
• Swing open for ease of installation
• Rigid housing case with UL rated durable plastic
• Indoor rated
• 6ft twisted pair leads
• Black/white leads
• BL-3 - 22AWG
Applications
• Energy and sub-metering products
• Electrical load monitoring
• Network equipment
• Instruments and sensors
• Control systems
• Go GREEN initiatives
