Model Number: 100A:100mADC, Byram Custom, split core CT for Byram meter
Ordering Number: BYR-BL2-100-MA100
Technical Specifications
-
Primary currents: Up to 100 Amps
-
Secondary current: 100 milliAmps
-

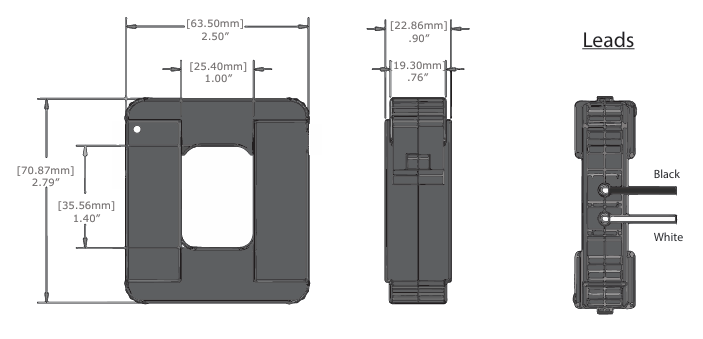

Inner diameter: 1" [25.4mm] x 1.4" [35.56mm]
-
Outer diameter: 2.5" [63.5] x 2.79" [70.87mm]
Features
• Secured latch & keying hole for locking/service tag
• Swing open for ease of installation
• Rigid housing case with UL rated durable plastic
• Indoor rated
• 6ft twisted pair leads
• Black/white leads
• BL-2 - 22AWG
Applications
• Energy and sub-metering products
• Electrical load monitoring
• Network equipment
• Instruments and sensors
• Control systems
• Go GREEN initiatives
