Commercial Electric Submeter - 3 Phase, 3 Wire | The Byram B20

Byram LabsOrdering #:1C7287
No reviews

Amperage: 100A
Price:
Sale price$1,100.00

Maximum Voltage

Continuous 528 VAC

Operating Voltage Range

120 V - 480 V

Surge Voltage Withstand

ANSI C37.90.1 oscillatory
2.5kV, 2500 strikes
Fast Transient
5 kV, 2500 strikes
ANSI C62.41
6 kV, @ 1.2/50 µs, 10 strikes
IEC 61000-4-4
4 kV, 2.5 kHz repetitive burst for 1 min.
ANSI C12.16
2.5 kV, 60 Hz for 1 min.

Temperature

-40 °F to +122  °F (inside meter cover)

Humidity

0 to 100% RH (non-condensing)

Enclosure

Rugged IP-66 and NEMA 4X outdoor-rated

Material

UV resistant polycarbonate

UL Type

4X/6P listed

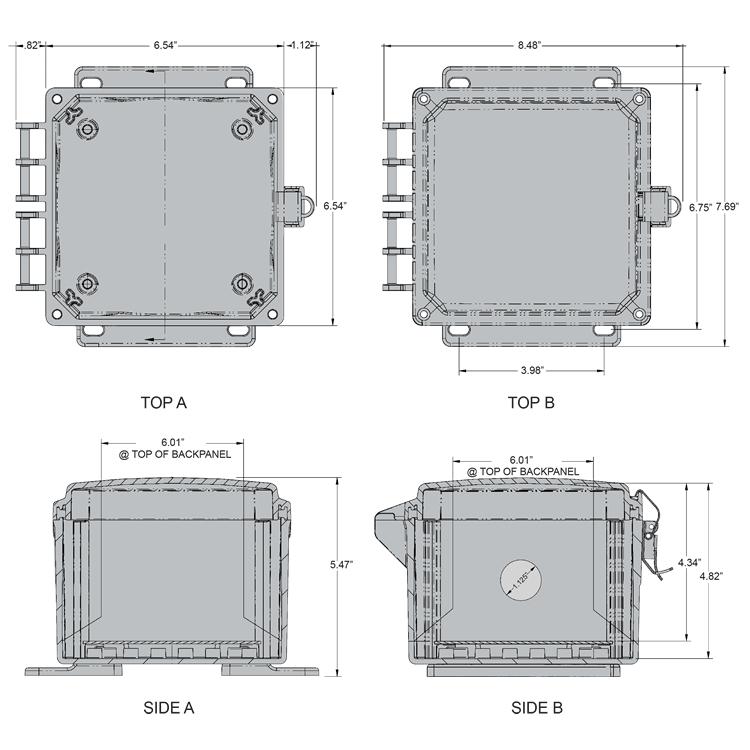

Width x Height x Depth

8.5 in x 7.7 in x 5.5 in

Weight

2.85 lbs

ANSI Standards

C12.1; C12.10; C13.18; C12.19; C12.20; C12.21

 Datasheets by Model #
Ordering #
Amperage
Compare to E-Mon D-Mon
B20-120100D 1C7287 100 A E20-480100
B20-120200D 1C7288 200 A E20-480200
B20-120400D 1C7289 400 A E20-480400
B20-120800D 1C7290 800 A E20-480800
B20-1201600D 1C7291 1600 A
E20-4801600
