Description

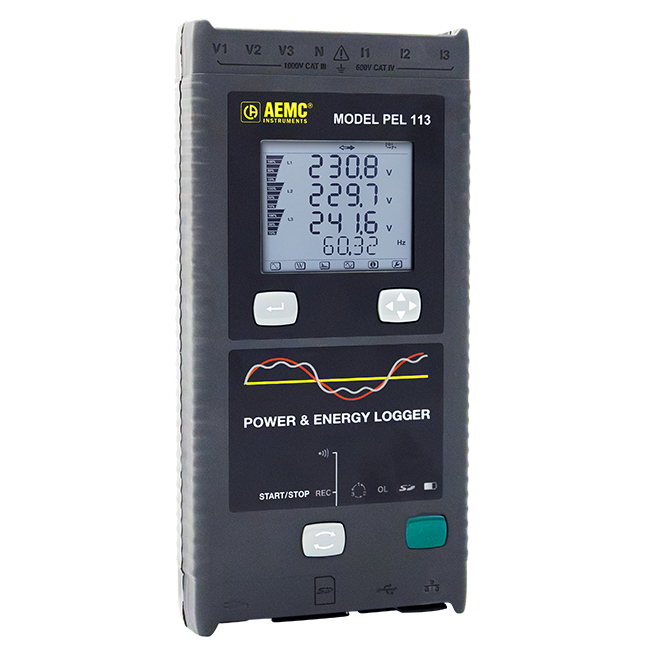

Model: AEMC PEL 113
Part Number: 2137.54
Ordering Number: 1C2548
The PEL 113 is a cost-effective, easy-to-use power and energy data logger designed to simplify energy audits, system monitoring, and electrical upgrades. Delivering precise, real-time measurements for single-phase, split-phase, and three-phase electrical systems, it helps efficiency professionals, facility managers, and electrical engineers reduce costs, improve power quality, and optimize system performance. With long-term recording capabilities, seamless installation, multiple connectivity options, built-in alarms and reporting, and advanced DataView® software, the PEL 113 provides accurate, actionable data for smarter energy management. Its compact, magnetic design makes it easy to mount in most electrical panels, making it a powerful solution for a wide range of applications.
- Power generation – Renewable energy, thermal plants
- Industrial facilities – Metallurgy, glass manufacturing, food processing
- Commercial and residential buildings
- Infrastructure and transportation
- Data centers
Applications
- Energy audits
- Electrical diagnostics
- Industrial maintenance
User-Friendly Design

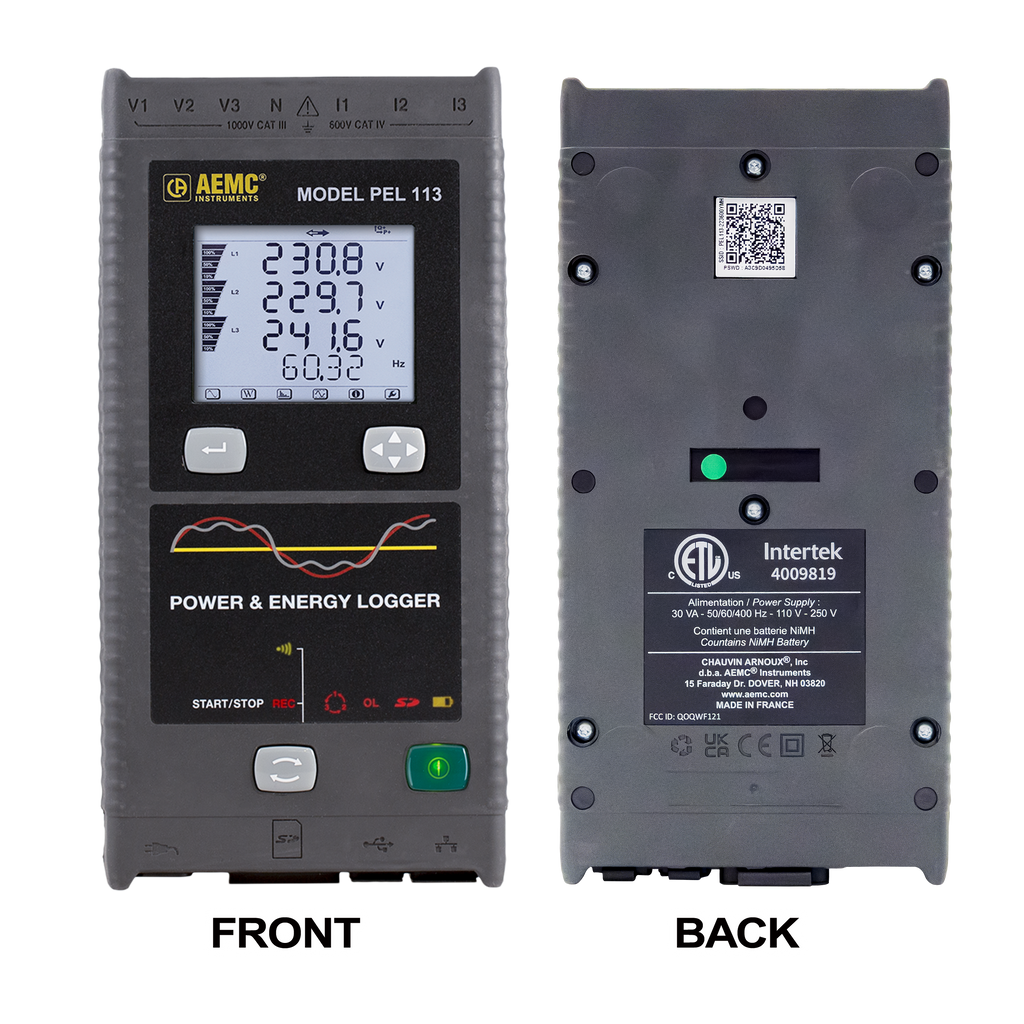

- Compact, magnetic casing for easy placement

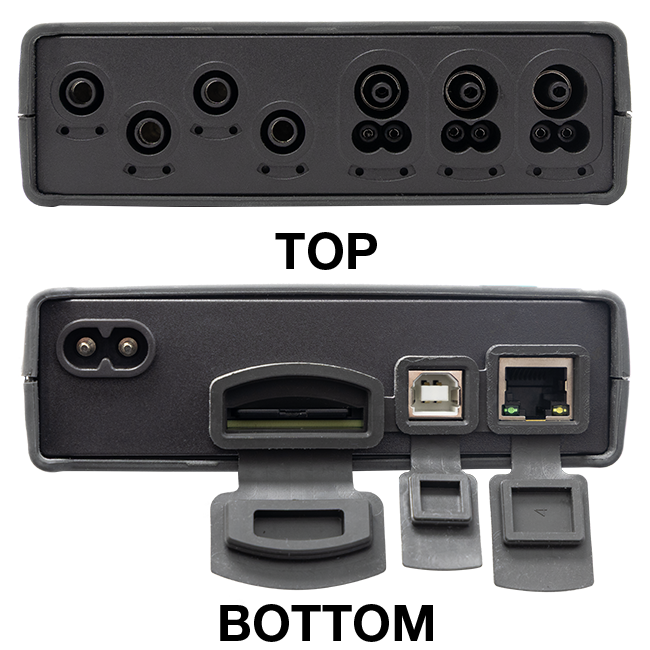

- Three voltage inputs and three current inputs
- Quadruple backlit digital display
- Self-powered via the measured circuit
Comprehensive Power Measurements
- AC and DC voltage up to 1000 V
- Current up to 10 kA AC / 5 kA DC (sensor-dependent)
- Active, reactive, and apparent power and energy analysis
- Fundamental, balanced, and unbalanced power measurements
- Motor diagnostics via the Android app
Advanced Analysis Features
- NEW: Real-Time Monitoring & Alerts – Stay informed with instant email reports and configurable alarms (up to 32).
- Breakdown of energy losses
- Phase analysis: Power factor (PF), cos φ, tan Φ
- Crest factor calculation
- Total Harmonic Distortion (THD) for current and voltage
- DC, 50 Hz, 60 Hz, and 400 Hz measurements (ideal for naval and marine applications)
DataView® Software
The DataView® software simplifies setup, monitoring, and analysis:
✔ Configure your PEL device
✔ Verify connections before recording
✔ Download and analyze recorded data
✔ Convert energy consumption into cost estimates in up to 8 pricing tiers
Flexible Network Connectivity
- NEW: Wi-Fi Direct DataViewSync™ – Create a direct wireless connection to a computer (supports up to 5 devices)
- NEW: Ethernet LAN/Wi-Fi (server mode) – Enables remote access from any networked device with DataView® software
- USB – Quick and direct connection
- The PEL Family of Loggers Android Application
| Inputs | 3 Voltage / 3 Current: calculation of neutral current | ||||
| Sample Rate | 128 per Cycle | 6.4kHz at 50Hz | 7.68kHz at 60Hz | ||
| Specification | Range | Measurement Range | Resolution | Accuracy (Typical) | |
| Volt | |||||
| Vrms | 1000V P to N | 10 to 1000V | 0.1V | ±0.2% Rdg + 0.2V | |
| Urms | 1000V P to P | 17 to 1700V | 0.1V | ±0.2% Rdg + 0.4V | |
| Amps @ 50 and 60Hz | |||||
| Amps (1V nominal) (excluding clamp accuracy | Probe dependent | 0.2%< I < 120% Inom | Probe dependent | ±0.2% Rdg + 0.02% Inom | |
| AmpFLEX & MiniFlex (including sensor accuracy) | Range 100A Range 400A Range 2kA Range 10kA | 200mA to 120A 5 to 440A 50 to 2400A 400A to 12kA | 1mA 0.1A 0.1A & 1A 1A | ±1.2% Rdg + 50mA ±1.2% Rdg + 0.2A ±1.2% Rdg + 1A ±1.2% Rdg + 5A | |
| Frequency | 42.5 to 69Hz | 0.01Hz | ±0.1Hz | ||
| Power | |||||
| Watts (VA, var) P-Q-S | 10W to 10GW / 10var to 10Gvar / 10VA to 10GVA | 4 digits min | ±0.5% Rdg + 0.005% Pnom | ||
| Power Factor (Cos Φ/DPF) | -1 to 1 | 0.001 | ±0.05 | ||
| Energy | |||||
| kWh (kVAh, kvarh) P-Q-S | Up to 4EWh / 4Evarh / 4 EVAh (E = 1018 ) | ±0.5% Rdg | |||
| Harmonics | DC, 1 to 50 | ||||
| Volts & Amp >#/strong### | 0.01 to 655.0>#/td### | 0.01>#/td### | ±1% Rdg from 1 to 25 | ||
| THD | 0.00 to 655.0>#/td### | 0.01>#/td### | ±1% Rdg | ||
| General Features | |||||
| Case | Design Rugged, shock proof with integrated protective holster, IP54 not included terminals. Shock and vibration IEC61010 | ||||
| Interface | Isolated USB, Bluetooth, and Ethernet, SD card for direct transfer to PC. Dataview software for real time data, configuration and reporting included | ||||
| Memory | 8GB SD card (SDHC compliant, FAT32 formatted) 32GB max | ||||
| Display | LCD with backlight | ||||
| Real-Time Clock | Time and date stamp for Trend mode | ||||
| Power | AC 110V/230V 50/60Hz 15VA; Battery backup when power OFF, 60 minutes typical | ||||
| Dimensions (L x W x H) | 10.08 x 4.92 x 1.46” (256 x 125 x 37mm) | ||||
| Weight | 2.2lbs (1kg) | ||||
| Altitude Operating | 2000m (6560ft) | ||||
| Operating Temperature | 32 to 108.5°F; (0°C to +42.5°C) from 10 to 85% RH | ||||
| Storage Temperature | -4 to 122°F; (-20°C to +50°C) from 0 to 75% RH with battery pack | ||||
| Electro-Magnetic-Compatibility (EMC) | EN 61326-1 for emission and immunity | ||||
| IP Rating | IP54 per IEC 60529 | ||||
| Safety | IEC/EN 61010-1 (1000V CAT III-600V CAT IV), IEC 1326-1 | ||||
