Description
Model: AEMC 8336 PowerPad III
Part Number: 2136.31
Ordering Number: 1C9324
The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT IV.
The Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored.
IMPORTANT WARRANTY NOTE: By registering online within 30 days from the date of purchase, your warranty will be extended to 3 years.
| Inputs | 4 Voltage / 4 Current | ||||
| Sample Rate | 256 per Cycle | 12.8kHz at 50Hz | 15.36kHz at 60Hz | ||
| Specification | Range | Measurement Range | Resolution | Accuracy (Typical) | |
| Volt | |||||
| Vrms (AC + DC) | 1000V P to N 2000V P to P | 2 to 1000V | 0.1V | ±0.5% Rdg + 200mV | |
| Vpk | 1414V | 2 to 1000V | 0.1V | ±3% Rdg + 2V | |
| Vrms Half Cycle | 1000V P to N 2000V P to P | 2 to 1000V | 0.1V | ±0.8% Rdg + 1V | |
| Amps (accuracy excluding clamp accuracy) | |||||
| Amps (AC + DC) | SR193 & MR193 MN193 5A MN193 100A | 1 to 1000A 5mA to 5A 100mA to 100A | 0.1A 1mA 10mA | ±0.5% Rdg + 200mA ±0.5% Rdg + 2mA ±0.5% Rdg + 20mA | |

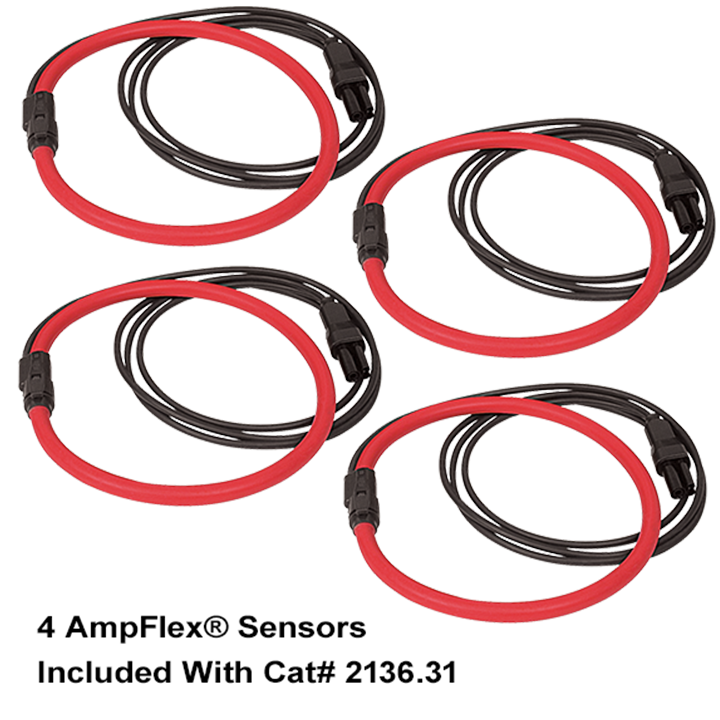

| AmpFlex & MiniFlex | Range 100A Range 6500A Range 10kA | 100mA to 100A 10 to 6500A 10A to 10kA | 1mA 0.1A & 1A 1A | ±0.5% Rdg + 30mA ±0.5% Rdg + 3A ±0.5% Rdg + 3A | |
| Apk | SR193 & MR193 MN193 5A MN193 100A | 1 to 1,414A 5mA to 7.017A 100mA to 141.4A | 0.1A 1mA 10mA | ±1% Rdg + 2A ±1% Rdg + 20mA ±1% Rdg + 200mA | |
| Apk AmpFlex & MiniFlex | Range 100A Range 6500A Range 10kA | 100mA to 100 A 10 to 6500A 10A to 10kA | 1A 0.1A & 1A 1A | ±3% Rdg + 600mA ±3% Rdg + 5A ±3% Rdg + 5A | |
| A Half Cycle | SR193 &MR193 MN193 5A MN193 100A | 1 to 1200A 5mA to 6A 100mA to 120A | 0.1A 1 mA 10mA | ±1% Rdg + 1A ±1% Rdg + 10mA ±1% Rdg + 100mA | |
| Frequency | 40 to 70Hz | 0.01 | ±0.01Hz | ||
| Power | |||||
| Watts (VA, var) P-Q-S | Probes: AmpFlex MiniFlex | 10mW to 10MW 10mW to 10MW | 4 digits min 4 digits min | ±1% Rdg ±1.5% Rdg | |
| Power Factor (Cos Φ/DPF) | -1 to 1 | 0.001 | ±1° for Φ, +5 cts for cos Φ | ||
| Energy | |||||
| kWh (kVAh, kvarh) P-Q-S | 1mWh to 9,999,999MWh (MVAh, Mvarh) | ±1% Rdg | |||
| Harmonics | DC, 1 to 50 | ||||
| Volts & Amp >#/strong### | f r Absolute V Absolute A THD | 0.0 to 1500>#br###0.0 to 100>#br###0.0 to 1000V 0.0 to 1000A 0.0 to 999.9>#/td### | 0.1>#br###0.1>#br###0.1V 0.1A 0.1>#/td### | ±2.5% Rdg + 5cts ±2.5% Rdg + 5cts ±2.5% Rdg + 1V ±2% Rdg + 1A ±2.5% Rdg + 5cts | |
| Phase Angle | -179° to +180° | 1° | ±1.5° +1°x(n/12.5) | ||
| Also display Energy loss, Flicker, Plt (2H), Pst (10min), Unbalance V% & A>#/td### | |||||
| General Features | |||||
| Programmable Alarm | Up to 40 types: 16,000 recorded max. | ||||
| Transient capture | Up to 210 | ||||
| Snapshot | Up to 50 (screen BMP + all channels data) | ||||
| Interface | Isolated USB, SD card slot accessible under instrument battery for direct transfer to PC, Dataview software for real time data, configuration and reporting included | ||||
| Memory | SD card (SDHC compliant, not formatted) standard, for trend Data, Internal memory for In-Rush, transients and alarms | ||||
| Display | Color TFT 320 x 240 (1/4 OFT) with graphic representation of system parameters and measurements | ||||
| Real-Time Clock | Time and date stamp for Trend mode, Transient display, System Monitor and event capture | ||||
| Power Supply | Rechargeable 9.6V NiMH battery pack, External charger | ||||
| Charging Time | 90 to 264VAC (50/60Hz) | 6 hours approx. | |||
| Battery Life | >13hrs when display ON, 25hrs when recording with display OFF | ||||
| Dimensions (L x W x H) | 9.8 x 7.9 x 2.6” (250 x 200 x 67mm) | ||||
| Weight | 4.3 lbs (1.95kg) | ||||
| Altitude Operating | 2000m (6560ft) | ||||
| Operating Temperature | 32° to 108.5°F (0° to 42.5°C) ≤85% RH | ||||
| Storage Temperature | -4° to 158°F (-20° to 70°C) ≤75% RH without battery | ||||
| IP Rating | IP53 per IEC 60529 | ||||
| Safety | IEC/EN 61010-1 (1000V CAT III-600V CAT IV), IEC 1326-1 | ||||
