Description
| CHANNELS | |
| Inputs / Bandwidth | Isolated channels |
| Input Impedance | 1MΩ ± 0.5%, approx. 12pF |
| INTERFACE | |
| Screen Specifications | Color 7" WVGA TFT LCD touch screen, 800 x 480 |
| Display Mode | Vectors with interpolation - 2500 real acquisition points on screen |
| Traces On Screen | 4 Traces + 4 References (split screen and full screen modes) |
| Front Panel Control | 32 keys |
| Screen Control | Touch screen - ANDROID type icons and graphical commands |
| VERTICAL | |
| Vertical Sensitivity | 16 ranges from 2.5mV - 200V/div and up to 156µV/div om vertical zoom mode (12-bit converter) - Accuracy ±2% |
| Max Input Voltage | 600V/CAT III (1000V per Probix) – from 50 to 400 Hz - Probix connectors |
| Vertical Zoom | "One click Winzoom" system (direct graphical zoom onscreen) x 16 max |
| HORIZONTAL | |
| Time Base Speed | 35 ranges from 1ns/div. to 200s/div. - accuracy ±[50 ppm + 500 ps] - Roll mode from 100 ms to 200 s/div |
| Horizontal Zoom | "One click Winzoom" system (direct graphical zoom onscreen) x 100 max |
| TRIGGER | |
| Mode | Auto, Triggered, One-shot, Auto-level 50% on all channels |
| Type | Edge, Pulse width (16ns - 20s), delay (48ns - 20s), counting (3 to 16,384 events) Continuous adjustment of Trigger position |
| Coupling | AC, DC GND, HFR, LFR, noise - Level and Hold-Off adjustable from 64ns to 15s |
| Autoset | Complete <5s with recognition of channels - Frequency >30Hz |
| Cursors | Two or three cursors: V and T with auto measurement: T1, T2, Dt, 1/Dt, dBV, Ph |
| DIGITAL MEMORY | |
| Max. Sampling Rate | 2.5GS/s in one-shot mode on each channel (100GS/s max. in ETS mode) 12 bits resolution |
| Memory Depth | 100kpts per channel and file viewer in the manager |
| Memory Capacity | Internal = 1GB to store the files: trace, text, configuration, math functions, System memory: .pdf print files, .png image files + high-capacity removable microSD-Card: SD 2GB, SDHC 4-32GB and SDXC >32GB |
| GLITCH Mode | Duration ≤ 2ns – 500,000 Min/Max pairs |
| Display Modes | Envelope, vector, accumulation -, averaging (factors 2 to 64) - XY (vector) and Y(f)=FFT |
| OTHER FUNCTIONS | |
| FFT Analyzer & Math Functions | FFT (Lin or Log) with measurement cursors - Functions, +, - x, / and mathematical function editor |
| Automatic Measurement | Simultaneously with waveform, 20 automatic measurements per channel and on the 4 channels simultaneously with scroll |
| Multimeter Mode | 4 channels, 8000 counts + Min/Max/Frequency/relative – TRMS – Time stamp graphic recording in logger mode |
| AC, DC, AC+DC Voltages | 600mV to 600VRMS, 800mV to 800VDC: accuracy 0.5% Bandwidth 200kHz |
| Power and PF | Active, Reactive, and Apparent power values plus Power Factor simultaneously with the U & I measurements |
| Resistance, Temperature, Capacitance, Frequency, and Diode Test on channel 1 only | |
| Acquisition | Duration: 20,000s - Interval: 0.2s - Files: 100,000 measurements |
| Harmonic Analyzer Mode | |
| Multi-Channel Analysis | 2, up to 61st, fundamental from 40 to 450Hz in auto or manual mode |
| Simultaneous measurement | Total Vrms, THD and selected order (% fundamental, phase, frequency, Vrms) |
| GENERAL FEATURES | |
| Interface | Isolated USB, WiFi, and Ethernet, SD micro card for direct transfer to PC. Web server/client with cursor and automatic measurements |
| Batteries | Rechargeable Li-Ion 6,900mAh 40W battery pack, External charger |
| Charging Time | 98 to 264VAC (50/60Hz) 2 hours when OFF |
| Battery life | Approx. 8 hours |
| Dimensions (L x W x H) | 11.5 x 8.29 x 2.6” (292.5 x 210.6 x 66.2mm) |
| Weight | 4.7 lbs. (2.1kg) |
| Altitude Operating | 2000m (6560ft) |
| Operating Temperature | 32° to 104°F (0 to 40°C) ≤80% RH |
| Storage Temperature | -4° to 140°F (-20 to 60°C) |
| IP Rating | IP54 per IEC 60529 |
| Safety | IEC/EN 61010-2-30 (1000V CAT II; 600V CAT III), IEC 1326-1 |
User Manuals
Datasheets

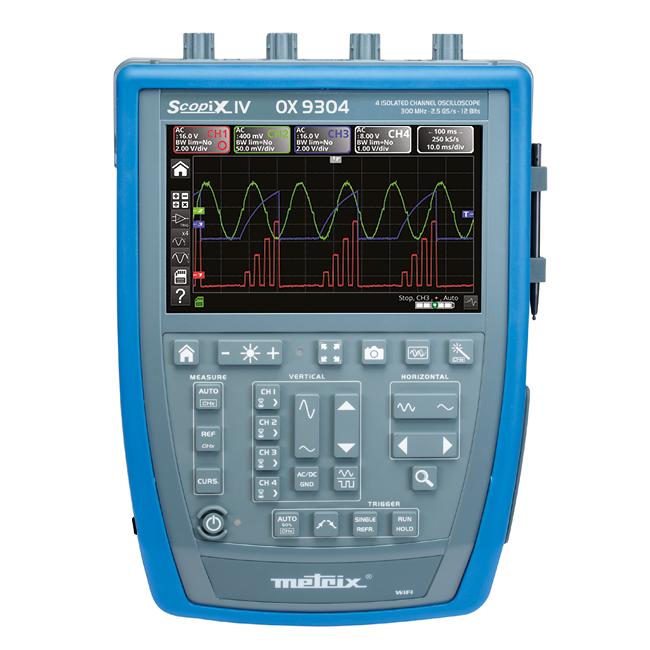

Hand-held Oscilloscope Model OX 9304 IV
