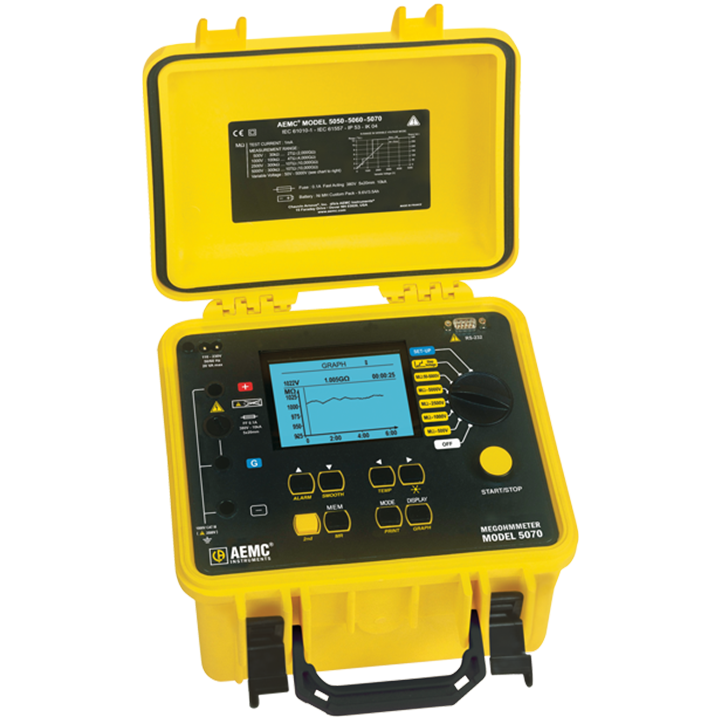

The Megohmmeter Model 5070 is a fully automated 5000V graphical insulation tester. This True Megohmmeter® features selectable and programmable test voltage (40 to 5100V) and programmable temperature correction of resistance readings. The Model 5070 is the only megohmmeter to offer both a graphical plot of the test right on the instrument, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph. It also offers the ability to program up to three step voltage profiles, each containing up to five steps. The Model 5070 has an RS-232 port which provides the ability to configure the unit and run the test from a PC. Test results can be generated directly to a printer using the DataView® graphing and analysis software.
AC/DC Voltage Measurement
Range
1 to 4000V
Accuracy
1 to 99.9V: ±(1% R + 5ct) 100 to 4000V: ±(1% R + 3ct)
Resolution
1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V
Frequency Range
1 to 2500V: DC or 15 to 500Hz 2501 to 4000V: DC
Input Impedance
750kΩ or 3MΩ (range dependent)
Insulation Measurement
Test Voltage / Resistance Range
500V: 30kΩ to 2TΩ 1000V: 100kΩ to 4TΩ 2500V: 100kΩ to 10TΩ 5000V: 300kΩ to 10TΩ
Measurement Accuracy
30kΩ to 39.99GΩ: ±(5% R + 3ct) 40.0GΩ 10TΩ: ±(15% R + 10ct)
Variable Voltage
40 to 5,100V
Auto Discharge
Discharge time < 7s/µF from Vtest to 25V @ 5000V
Live Circuit Indicator
Test inhibition if terminal voltage > 3, 10, 20% (selectable by user) of test voltage
General Features
Programmable Alarm
Yes
DAR – PI – DD – R(t)
Yes
Ramp Mode
No
Step Mode
Up to 5 steps (voltage and duration configurable for each step)
